Barton Marine 03 900 Size 3 4:1 Vang Tackle System with Snap Shackles

Manufacturer

Part Number

03 900
Sale Price

$277.81

In Stock (7)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

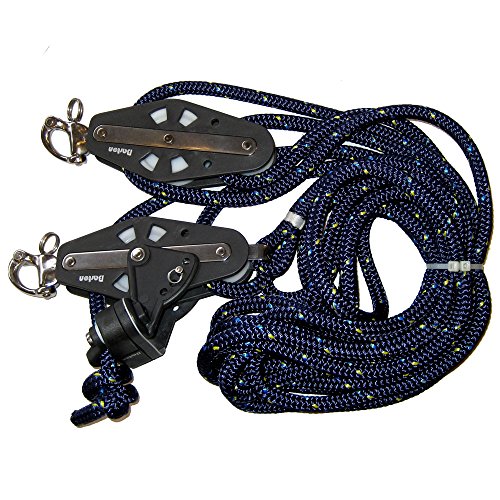

The Barton Marine Size 3 4:1 Vang Tackle System (03 900) is a complete, ready-to-install boom vang kit designed for sailboats up to 25 feet (7.6 m). Also known as a kicker system, a boom vang applies downward tension on the boom to control sail shape — reducing twist for upwind power and allowing a controlled open leech for downwind sailing.

This kit can be used to upgrade an existing vang setup or deployed as a boom preventer. Dual snap shackles at both the head and the standing end allow for fast, single-handed attachment and release. The system arrives professionally spliced and fully assembled, so it is ready to rig straight out of the box.

Kit Includes:

  • N03641 — Fiddle block with snap shackle, becket, and cam cleat
  • N02440 — Fiddle block with snap shackle
  • 24 ft (7.3 m) of 5/16 in (8 mm) double-braided polyester line with a soft eye splice

Specifications:

  • Mechanical Advantage: 4:1
  • Safe Working Load (SWL): 880 lbs (400 kg)
  • Block Size: Size 3 (45 mm)
  • Line Length: 24 ft (7.3 m)
  • Line Diameter: 5/16 in (8 mm) braided polyester
  • Recommended Boat Size: Up to 25 ft (7.6 m)
  • Weight: 1.76 lbs (0.8 kg)

Part numbers for the included components are N03641 and N02440. This system can also serve as a handy billy for general purchase applications aboard. Manufactured in the United Kingdom by Barton Marine. OEM/UPC: 5035088039005.

Products specifications

Diameter

5/16 Inch or 8mm

Mount Type

Snap Shackle

Type

Block System

Weight

2.00

Becket

Becket

Direction

Any

Integral Cleat

Integral Cam

Ratchet

Non Ratcheting

Safe Working Load

848 Pounds

Sheave Diameter

30 mm58 mm
