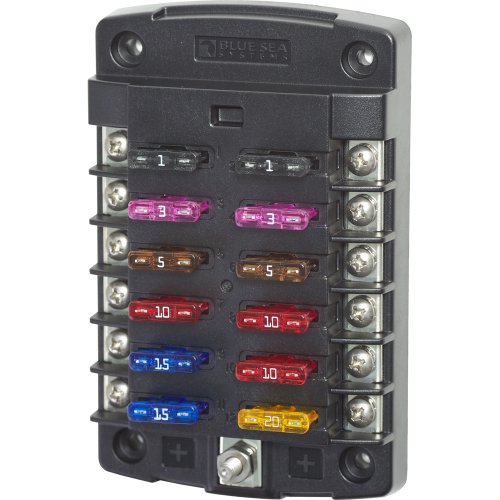

Blue Sea Systems 5034 12-Circuit Blade Fuse Block with Screw Terminals

The Blue Sea Systems 5034 is a 12-circuit blade fuse block designed to provide reliable circuit protection for marine and automotive electrical systems. This compact fuse block is the ideal solution for electronics installations or switch panels that lack integrated circuit protection, helping prevent wiring damage and potential fire hazards caused by overloaded or short circuits.

Key Features:

• 12 independent circuits with protection from 1A to 30A per circuit
• Compact surface-mount design for easy installation in tight spaces
• Tin-plated copper buses and fuse clips for maximum corrosion resistance
• Positive distribution bus with #8-32 terminal screws for secure connections
• Dual-side terminal access for simplified wiring
• Accepts both ring and snap fork type terminals
• Compatible with standard ATO® and ATC® fast-acting blade fuses
• Open design without cover for easy fuse access and visual inspection

Technical Specifications:

• Number of Circuits: 12
• Maximum Amperage: 100A per block, 30A per circuit
• Maximum Voltage: 32V DC
• Mounting Hardware: #8 screws
• Terminal Stud Size: #10-32
• Dimensions: 5.25" L × 3.31" W × 1.5" H

Perfect for tailoring circuit protection to individual electronic components or consolidating multiple branch circuits with inline fuses. Fuses sold separately. Backed by Blue Sea Systems' lifetime warranty.
