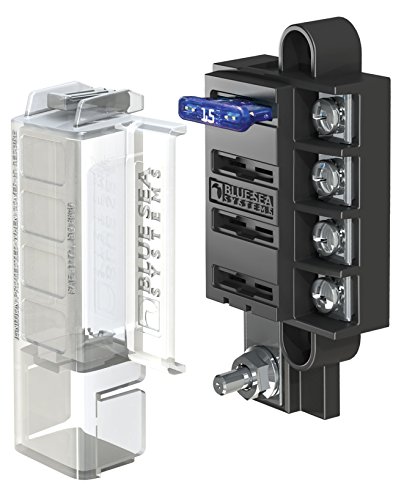

Blue Sea Systems 5045 ST Blade Compact Fuse Block Circuit Common Source - 4

Manufacturer

Part Number

5045
Sale Price

$24.83

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Blue Sea Systems 5045 ST Blade Compact Fuse Block is a four-circuit, common source fuse block that protects wiring from damage and possible fire caused by an overload or short circuit. Its space-saving design suits new installations or panels that have run out of breakers. It is often used for electronics, fed by a single breaker from the distribution panel to supply power to 4 additional circuits.

Key Features:

  • Compact surface-mount design for easy installation
  • Terminals located on one side to concentrate wiring and minimize the overall footprint
  • Clear cover insulates fuses and terminals from accidental contact, satisfies ABYC/USCG requirements, and provides space for write-on labels
  • Tin-plated copper buses and fuse clips give up to 30A per circuit protection
  • Positive distribution bus with #8-32 terminal screws
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Ignition protected, so it can be installed in engine rooms of gasoline powered boats
  • Includes 4 write-on labels and accepts square pre-made labels
  • Fuses sold separately

Specifications:

  • Circuits: 4
  • Maximum Amperage: 100A per block / 30A per circuit
  • Maximum Voltage: 32V
  • Mounting: #8 screw
  • Terminal Stud: #10-32
  • Dimensions: 3 11/16" L x 1 3/4" W x 1 5/16" D
  • Approvals: CE, IP66, ISO 8846, SAE J1171

A compact way to add protected, labeled circuits to a marine electrical system.

WARNING: Some products may contain chemicals such as DEHP, which can cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Products specifications

Amperage

100 Amps per Block; 30 Amps per Circuit

Mounting Hardware

Two #8 Screws (Sold Separately)

Type

Fuse Blocks

ISO Approved

ISO 8846 Marine

Warranty Details

Lifetime
