Blue Sea Systems 5052 ST CLB Circuit Breaker Block, 6 Position Common Source with Ground

Manufacturer

Blue Sea Systems

Picture for manufacturer Blue Sea Systems 8030 Label Kit Dc Panel Basic 30/pk

Part Number

5052
14 reviews
11/21/2034 2:05 PM
Black Friday Price

$65.12

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Add To Cart

Check out with

PayPay

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

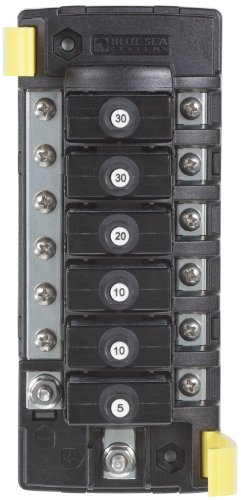

Blue Sea Systems 5052 ST CLB Circuit Breaker Block, 6 Position Common Source with Ground

Blue Sea Systems 5052

Resettable breaker circuit protection that is more affordable and easier to install

Resettable breakers have an advantage over fuses as a method of circuit protection. Both prevent damage to wiring and possible fire in the event of an over-loaded or short circuit, but fuses have to be replaced. A breaker can be reset and restore function when the fault is no longer detected, however, breaker panels are thought to be costly and difficult to install. Blue Sea Systems designed this breaker block to offer the convenience of resettable current protection with the ease of fuse block installation.

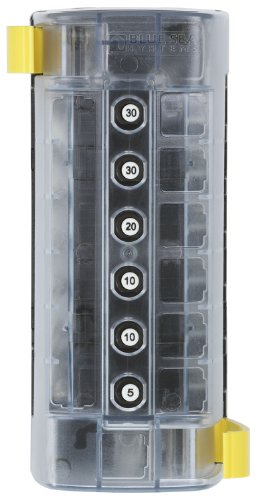

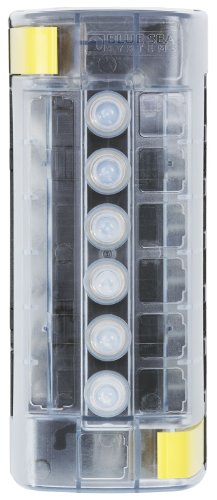

Ideal for circuits that are switched elsewhere or do not require switching, this block provides positions for six circuits and includes a 15A  breaker to get you started. The remaining slots can be customized by simply plugging in breakers ranging from 3A-40A (sold separately). A clear insulating cover provides space for square format labels and satisfies ABYC and USCG requirements. Breakers can be reset without removing the cover through access holes. Breakouts in the cover sides provide wire access to terminal buses. A common ground bus makes grouping ground wires simple and speeds up installation.

Features:

  • Resettable breaker circuit protection in same space as conventional fuse blocks
  • Breakers install easily
  • Cover satisfies ABYC/USCG requirements for insulation
  • Tin-plated copper buses with #8-32 terminal screws
  • Accepts ring or snap fork type terminals
  • Accepts push button breakers with 1/4" Male Quick Connect terminals available in 3A-40A
  • Includes one 15A breaker
  • Accepts square format labels (sold separately)
  • Lifetime warranty

Specifications

  • No. Circuits: 6
  • Maximum Amperage: 100A per block/ 30A per circuit
  • Maximum Voltage: 32V
  • Mounting: # 8 screw
  • Negative bus fasteners: #10-32
  • Positive terminal fasteners: #8-32
  • Dimensions: 6 11/16"L x 2 13/16"W x 2 5/8"”Deep


Prop65WARNING: Some Products may contain chemicals such as DEHP, which can cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Products specifications

Amperage

32 Amps

Mounting Hardware

Includes #8-32 Fasteners

Type

Circuit Breaker Blocks

ISO Approved

Satisfies ABYC/USCG Insulation Requirements

Warranty Details

Lifetime
