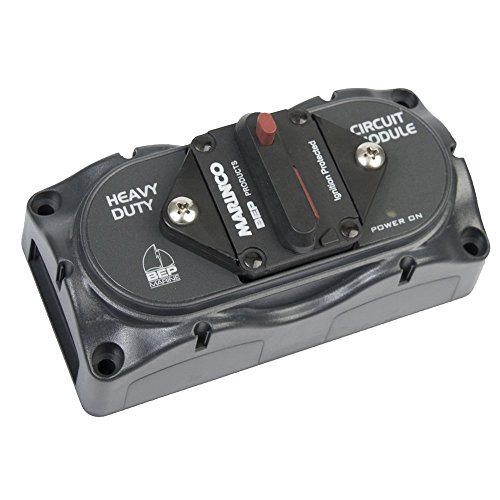

BEP Marine 705-50A Heavy Duty Contour Circuit Breaker 50A

The BEP Marine 705-50A is a heavy-duty thermal circuit breaker module designed to provide switchable overcurrent protection for high-demand marine electrical circuits. Built around a Bussmann heavy-duty thermal circuit breaker, this 50-amp unit is engineered for applications like windlasses, davit winches, and other power-hungry onboard systems that require reliable, resettable protection.

Part of BEP's 705 Contour series, this circuit breaker module integrates seamlessly into modular panel configurations thanks to its contour lock molding, which allows units to be grouped and secured together cleanly. An integrated LED provides a clear visual indication that the circuit is energized, making it easy to confirm status at a glance.

Key Features:

• 50-amp rating — suitable for heavy-duty marine loads including windlasses and davit winches
• Bussmann heavy-duty thermal circuit breaker — proven, reliable overcurrent protection
• Switchable design — allows the circuit to be manually opened or closed
• Contour lock molding — modular design enables easy grouping with other 705 series modules
• LED circuit indicator — illuminates when the circuit is active
• 6mm stud size for secure wiring connections
• Available in five amperage ratings (50A–150A) within the 705 Contour HD series

Specifications:

• Amperage: 50A
• Stud Size: 6mm
• Dimensions: 5.43"L x 2.72"W x 2.95"H (138mm x 69mm x 75mm)
• UPC: 870216000848
