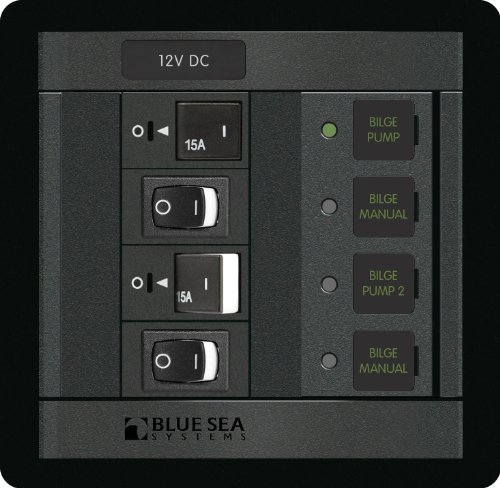

Blue Sea Systems 1522 360 Panel Dual Bilge Pump Control 12V DC

The Blue Sea Systems 360 Panel Dual Bilge Pump Control provides comprehensive monitoring and control for two independent bilge pump circuits on your vessel. This marine-grade control panel features restricted-off circuit breakers and manual override switches to ensure reliable bilge pump operation and 24-hour circuit protection.

Key Features:

• Controls two separate bilge pumps with individual circuit protection
• Restricted-off circuit breakers provide continuous 24-hour protection to bilge pump float switches
• On-indicating LED indicators show when power is available at each float switch
• Manual override switches with LED indicators for visual confirmation of pump operation
• Override LEDs illuminate both during manual activation and automatic float switch operation
• Flush-mount design for clean dashboard integration

Technical Specifications:

• Nominal Voltage: 12V DC
• Panel Dimensions: 4.88" W x 4.75" H (123.95mm x 120.65mm)
• Includes: (2) 7427 A-Series Restricted Off Flat Rocker Circuit Breakers - Single Pole 10A
• Includes: (2) 7480 Rocker Switch SPST - ON-OFF

Blue Sea Systems circuit protection solutions are engineered for harsh marine environments, providing reliable performance and ease of troubleshooting. The 360 Panel series offers intuitive control with clear visual feedback for critical onboard systems.
