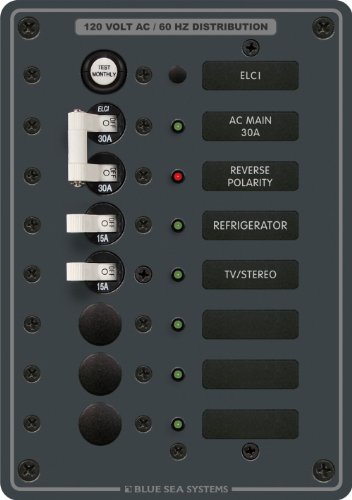

Blue Sea Systems 8101 ELCI Main with AC Panel - 30A 120V 5 Position

The Blue Sea Systems 8101 AC main panel features an integrated 30A ELCI (Equipment Leakage Circuit Interrupter) main breaker with two additional circuit positions, providing comprehensive shore power protection for marine electrical systems. This 5-position panel combines overcurrent protection with ground fault monitoring to meet ABYC E-11 standards for whole-boat electrical safety.

Key Features:

• 30A double-pole ELCI main residual current circuit breaker with 30mA leakage trip threshold
• Provides both overcurrent and leakage protection per ABYC E-11 requirements
• Red reverse polarity LED indicator for instant wiring fault detection
• Backlit circuit label positions for easy identification in low light conditions
• Individual "ON" indicating LEDs for each circuit position
• 120V AC nominal voltage rating

Specifications:

• Panel Positions: 5 (1 main + 2 additional circuits)
• Main Breaker: 30A ELCI double-pole
• Voltage: 120V AC
• Leakage Trip Current: 30mA
• Dimensions: 7.50"W × 5.25"H × 3.50"D
• Weight: 2.25 lbs

Designed for marine applications, this panel provides essential electrical protection while maintaining a compact footprint suitable for boats with limited panel space. The ELCI main breaker continuously monitors for dangerous current leakage that could indicate ground faults or potential electrocution hazards, automatically disconnecting power when leakage exceeds safe levels.
