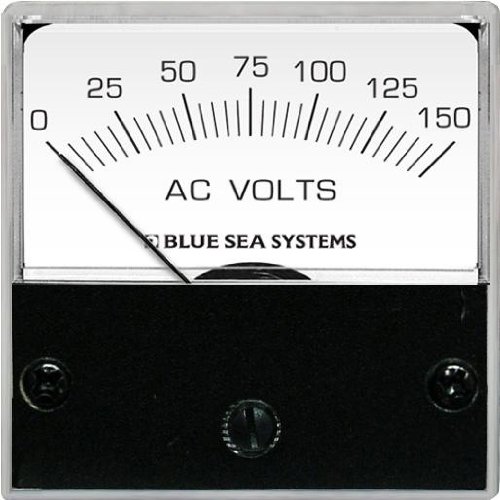

Monitor batteries and charging voltage in an easy to read analog voltmeter
Voltmeters provide important information needed to maintain batteries and keep you out on the water or off the grid longer.They give a "status report" on how charged your batteries are, especially when batteries have been idle for a few days. Voltmeters also alert you to potentially dangerous deep discharges, and to even more hazardous overcharges. Blue Sea Systems has designed two sizes of analog voltmeters to relay this information; a standard for most applications and a micro for space limited applications. A modern “flat scale” design makes precise reading easier. The compact size and simple four-wire connection (two-wire connection for AC units) make surface mounted or panel mounted installation straightforward.
Key Features
- Two available sizes to match existing meters or to fit application space
- Flat scale design to make precise reading easier

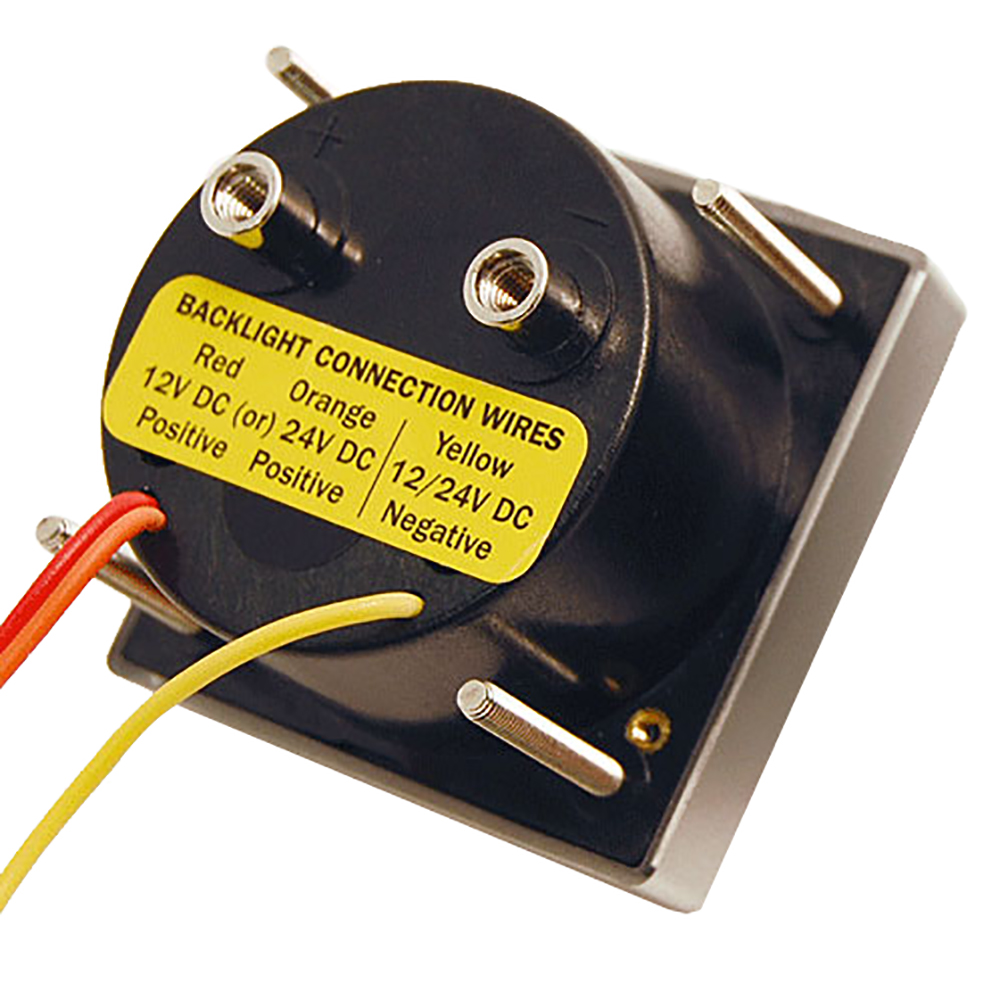

- Surface or panel mount options with 4 wire (2 wire for AC units) connections for easy installation
- Lifetime warranty
| Specifications | 8003 | 8028 | 8240 | 8244 | 9353 |
|---|
| AC DC | DC | DC | DC | AC | AC |
| Meter | Voltage | Voltage | Voltage | Voltage | Voltage |
| Face Size | 2 3/4" | 2" | 2 3/4" | 2" | 2 3/4" |
| Function | 8 to 16V | 8 to 16V | 18 to 32V | 0 to 150V | 0 to 150V |
| Backlighting Amperage | 16mA @ 12V DC, 20mA @ 24V DC | 16mA @ 12V DC, 20mA @ 24V DC | 16mA @ 12V DC, 20mA @ 24V DC | 16mA @ 12V DC, 20mA @ 24V DC | 16mA @ 12V DC, 20mA @ 24V DC |
| Meter Current | 1mA at full scale | 1mA at full scale | 1mA at full scale | 1mA at full scale | 1mA at full scale |
