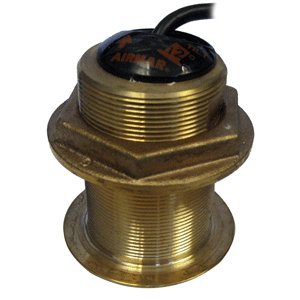

Furuno 525T-LTD/12 B60-12 Bronze Tilted Element Transducer 50/200 kHz

The Furuno 525T-LTD/12 is a high-performance B60-12 bronze through-hull transducer featuring Furuno's innovative Tilted Element technology. Designed specifically for hulls with 8° to 15° deadrise angles, this transducer has a 12° tilted ceramic element built into the housing, eliminating the need for an external fairing block while ensuring a vertical sonar beam for optimal depth readings.

The low-profile bronze housing extends just 5mm (3/16") below the hull surface, minimizing drag and turbulence while maintaining excellent durability in saltwater environments. The transducer provides both depth and temperature sensing capabilities across dual frequencies.

Key Specifications:

• Frequencies: Dual 50/200 kHz for versatile depth sounding
• Power Rating: 600 watts RMS
• Deadrise Compensation: 12° tilt for 8° to 15° hull angles
• Functions: Depth and temperature sensing
• Construction: Bronze housing for corrosion resistance
• Performance Class: Mid-performance transducer
• Connection: 10-pin pigtail connector for easy installation
• Profile: Nearly flush mount design with minimal drag

The B60-12's tilted element design provides a true vertical beam without additional fairings, delivering more accurate echo returns and precise depth measurements. Ideal for sportfishing boats, cruisers, and sailing vessels with moderate deadrise hull configurations.
