Tailor the circuit protection in your breaker panel to the exact needs of your system with an updated industry standard breaker

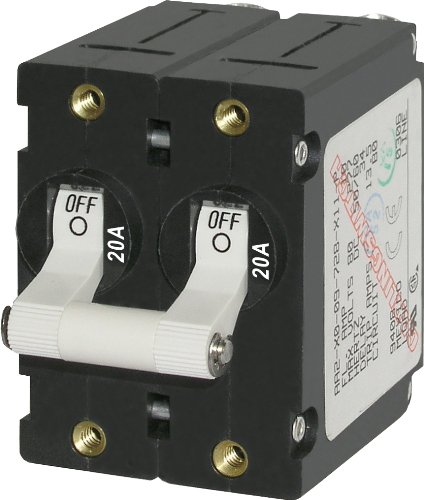

Rarely will a breaker panel come pre-installed with the exact circuit protection your system requires. Each electrical system is unique to the boat and the boat owner. It is inevitable that breakers will have to be changed to meet the demands of the existing or changing electrical loads. Blue Sea Systems makes it simple. The A-Series circuit breakers combine circuit protection and switching into a single toggle and are designed to fit Blue Sea Systems panels for a quick change to the correct protection. All A Series breakers are now CE marked and continue meet ABYC and USCG standards. These breakers are capable of handling short start-up current surges found in electric motors and other appliances without tripping. For added safety, a Trip-Free feature prevents the toggle from being held in the ON position when a fault is detected. These double pole breakers are available in 5A-50A protection ratings with white or black toggles; there will be one that will match your application and your breaker panel.
Key Features
- Combine switching and circuit protection into single toggle switch
- Compatible with AC or DC circuits
- Industry standard and compatible with Blue Sea Systems electrical panels for a simple change
- Trip-Free feature means switch cannot be held in ON position when a fault is detected
- Magnetic-hydraulic delay trip mechanism recognizes surges caused by start-up currents and will not trip
- Trips both poles if fault is detected in either positive or neutral circuits
- Improved ability to interrupt higher current without failure
- Available in 5A to 50A ratings
- Available with white or black toggles to match existing panel
Specifications
- Amperage: 10A-50A
- Voltage: 120V-240V AC, 65V DC
- Poles: 2
- Toggle Color: White,
- Approvals: CE, ABYC, UL 1077, TUV certified, CSA certified
