Lenco TT9X9EI 9x9 Edge Mount Trim Tab Kit with LED Indicator Switch

The Lenco TT9X9EI is a complete 9" x 9" edge mount trim tab system featuring electric actuators and an LED indicator switch. Edge mount installation positions the actuator at the trailing edge of the trim plane, requiring 4" less transom height than standard mount configurations, making it ideal for boats with limited transom space.

Electric Ballscrew Actuator Technology:

• Instant response electric actuators provide precise trim control
• Self-locking ballscrew design won't drift, even when backing down
• Three times more powerful than typical hydraulic systems
• Oil-free, environmentally friendly operation
• 316 super buff stainless steel rams for maximum corrosion resistance
• High-impact, 50% glass fiber-filled, UV-resistant nylon actuator case
• Fully submersible, maintenance-free, sealed-for-life construction

Tactile LED Indicator Switch Features:

• Self-contained, sealed keypad and control box module
• 2 high-intensity LED indicators display exact trim tab position at all times
• Photo eye sensor adjusts LED brightness for optimal viewing in direct sunlight
• Built-in retract feature returns tabs to fully retracted position when power is removed
• Self-check feature for system diagnostics
• Fade/smudge-proof laser engraved graphics
• Compact 2" hole cut-out size, 2.75" x 2.75" overall dimensions
• Compatible with 12V and 24V electrical systems
• Plug-and-play wiring harness with 36" power pigtail

Heavy-Duty Construction:

• 12-gauge laser cut stainless steel trim tab planes
• High-impact corrosion-proof mounting brackets
• All stainless steel mounting hardware included

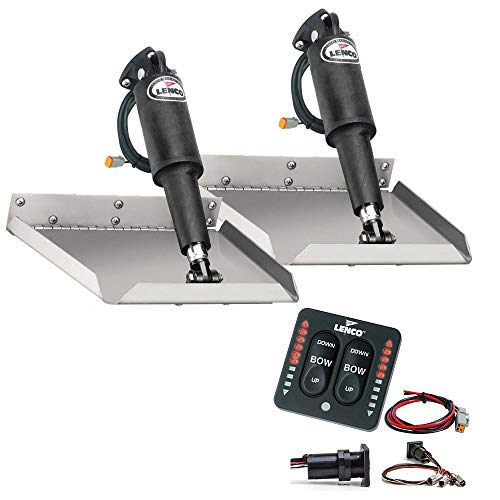

Complete Kit Includes:

• Tactile LED indicator switch kit with control box
• 2 electric actuators with 6' leads and Deutsch plugs
• 2 20' actuator extension wiring harnesses
• 2 12-gauge stainless steel 9" x 9" trim tab planes
• 2 upper mounting brackets with gland seals
• 2 lower mounting brackets
• All stainless steel mounting hardware

Lenco trim tabs improve boat performance by optimizing running angle, reducing bow rise, increasing stability, and improving fuel efficiency. The electric ballscrew design offers superior reliability and instant response compared to hydraulic systems.
