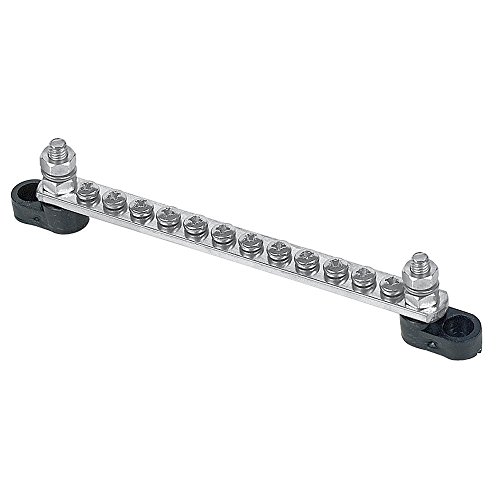

BEP Marine BB-12W-2S/DSP Single Bus Bar 12-Way 100A 2 Input Studs with Red/Black Covers

The BEP Marine BB-12W-2S/DSP is a single marine-grade bus bar designed for positive or negative DC distribution in boat electrical systems. With 12 output terminals and 2 input studs rated at 100 amps, it provides a clean, organized connection point for multiple circuits. This bus bar is supplied as standard with BEP AC/DC control panels and is equally well-suited as a standalone upgrade.

Key Features:

• 12 output terminals with 4mm (5/32") stainless steel screws and shakeproof washers for secure, captured wiring connections
• 2 x 1/4" (6mm) input studs for dual power feed connections
• 100A rating — 300V AC / 48V DC maximum
• Tin-plated brass construction with flame-retardant, insulated mounting base featuring recessed mounting holes to prevent accidental shorts on aluminum surfaces

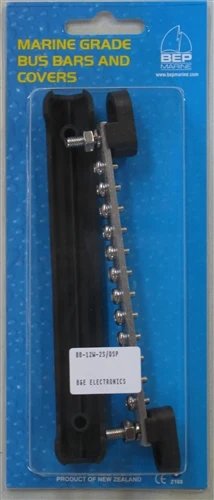

• Includes color-coded flexible plastic covers — red for positive, black for negative — with a unique push-on fit for quick installation and polarity identification
• Meets ABYC standards and is CE rated

Specifications:

• Bus Type: Single
• Output Screws: 12
• Input Studs: 2
• Current Rating: 100A
• Screw Size: 4mm (5/32") stainless steel
• Stud Size: 6mm (1/4")
• Dimensions: 177mm x 15mm x 29mm (7" x 0.6" x 1.1")
• OEM Part Number: BB-12W-2S
• UPC: 870216003849

The BB-12W-2S/DSP is an ideal solution for pro installers and marine electricians looking for a reliable, code-compliant bus bar with integrated polarity protection and a professional finish.
