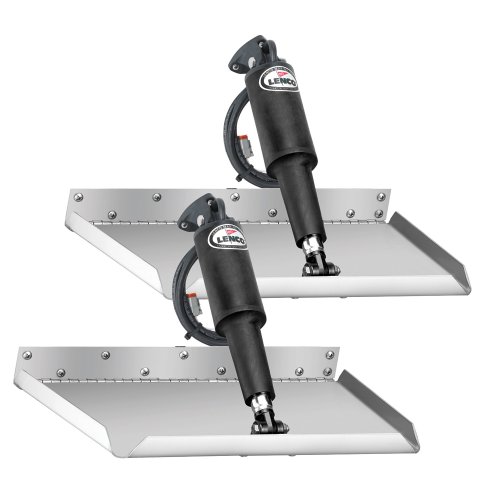

The Lenco TT12X9EI is a complete 12" x 9" edge mount electric trim tab system designed to dramatically improve your boat's performance, ride quality, and safety. The edge mount design positions the actuators at the trailing edge of the trim planes, requiring 4" less transom height than standard mount configurations, making it ideal for boats with limited transom space.
Advanced Electric Actuator Technology:
Lenco's ballscrew electric actuators deliver instant response and precise control, providing three times more power than comparable hydraulic systems. The self-locking ballscrew design prevents drift even while backing down, and the oil-free operation makes them environmentally friendly and maintenance-free. Each actuator features a high-impact, 50% glass fiber-filled, UV-resistant nylon case with 316 super buff stainless steel rams that are fully submersible and sealed for life.
Premium Trim Tab Planes:
The system includes two 12-gauge laser-cut stainless steel trim tab planes with high-impact, corrosion-proof mounting brackets engineered to withstand years of marine use while maintaining their appearance.
Tactile LED Indicator Switch Features:
- Self-contained, sealed keypad and control box module for reliable operation
- Fade and smudge-proof laser-engraved graphics
- Two high-intensity LED indicators display exact trim tab position at all times
- Photo eye sensor automatically adjusts LED brightness based on ambient light for optimal viewing in direct sunlight
- Built-in retract feature returns tabs to fully retracted position when power is removed
- Self-check feature for system diagnostics
- Compact 2" hole cut-out size with 2.75" x 2.75" overall dimensions
- Compatible with both 12-volt and 24-volt systems
Complete Kit Includes:
- Tactile LED indicator switch kit with 36" power pigtail
- Two electric actuators with 6' leads and Deutsch plug connectors
- Two 20' actuator extension wiring harnesses with plug-and-play connectors
- Two 12-gauge stainless steel trim tab planes (12" x 9")
- Two upper mounting brackets with gland seals
- Two lower mounting brackets
- All stainless steel mounting hardware
This system provides clean, space-saving installation with instant response for precise boat control, making your vessel ride smoother, drier, and faster in all conditions.
