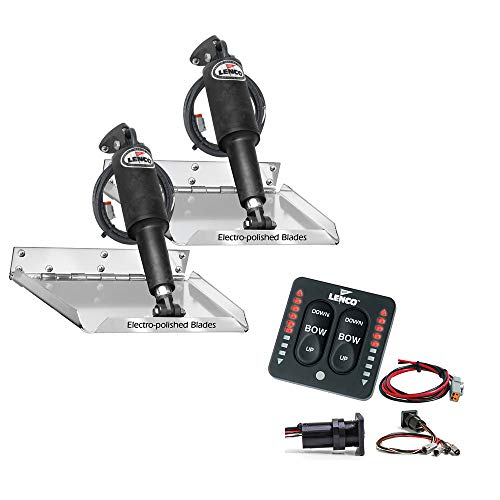

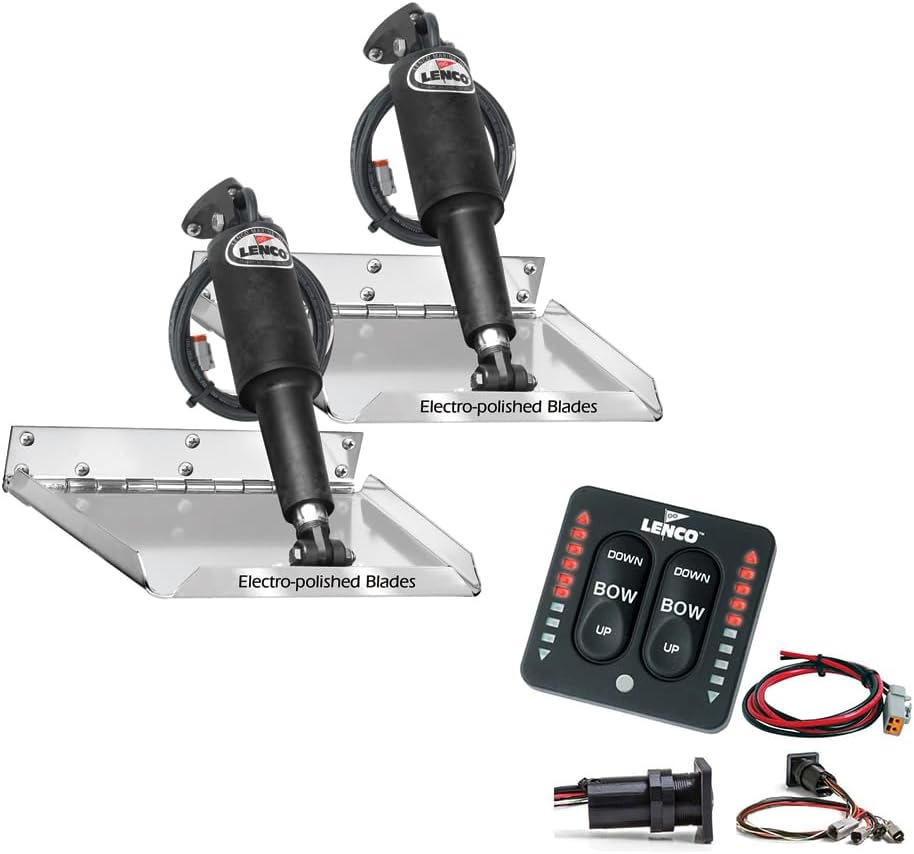

Lenco RT12X12I 12x12 Inch Performance Trim Tab Kit with LED Indicator Switch

The Lenco RT12X12I is a complete 12"x12" trim tab system designed for high-performance boating applications. This kit features Lenco's Standard Performance Series construction with fully submersible actuators and electro-polished stainless steel blades built to withstand aggressive marine environments.

Trim Tab Construction:

• 12-gauge 304 stainless steel construction throughout—no dissimilar metals to cause corrosion
• Electro-polished blades for superior corrosion resistance and lasting appearance
• 1" turned-up trailing edges with 2" internal taper for optimal hydrodynamic performance
• Standard actuators with 5/16" stainless steel through-bolts for secure mounting

Actuator Features:

• Instant response with precise, controllable speed for predictable handling at any speed
• Fully submersible, maintenance-free design sealed for life
• High-impact nylon case with 50% glass fiber fill and UV resistance

Tactile LED Indicator Switch:

• Self-contained, sealed keypad and control box module
• Laser-engraved, fade-proof and smudge-proof graphics
• Two high-intensity LED indicator displays show exact tab position at all times
• Photocell automatically adjusts LED brightness based on ambient light for optimal visibility in direct sunlight
• Built-in auto-retract feature returns tabs to fully retracted position when power is removed
• Plug-and-play wiring harness with 36" power pigtail
• 2" hole cut-out size, 2.75" x 2.75" overall dimensions
• Compatible with 12-volt and 24-volt systems
• Includes self-check diagnostic feature

Complete Kit Includes:

• Tactile LED indicator switch with control module
• Two actuators with 6' leads and Deutsch connectors
• Two 12-gauge stainless steel electro-polished trim tab planes (12"x12")
• Two 20' actuator extension wiring harnesses
• Two upper mounting brackets with gland seals
• Two lower mounting brackets
• All necessary stainless steel mounting hardware

This system provides precise trim control for improved boat handling, reduced bow rise, better fuel efficiency, and enhanced stability in rough water conditions.
