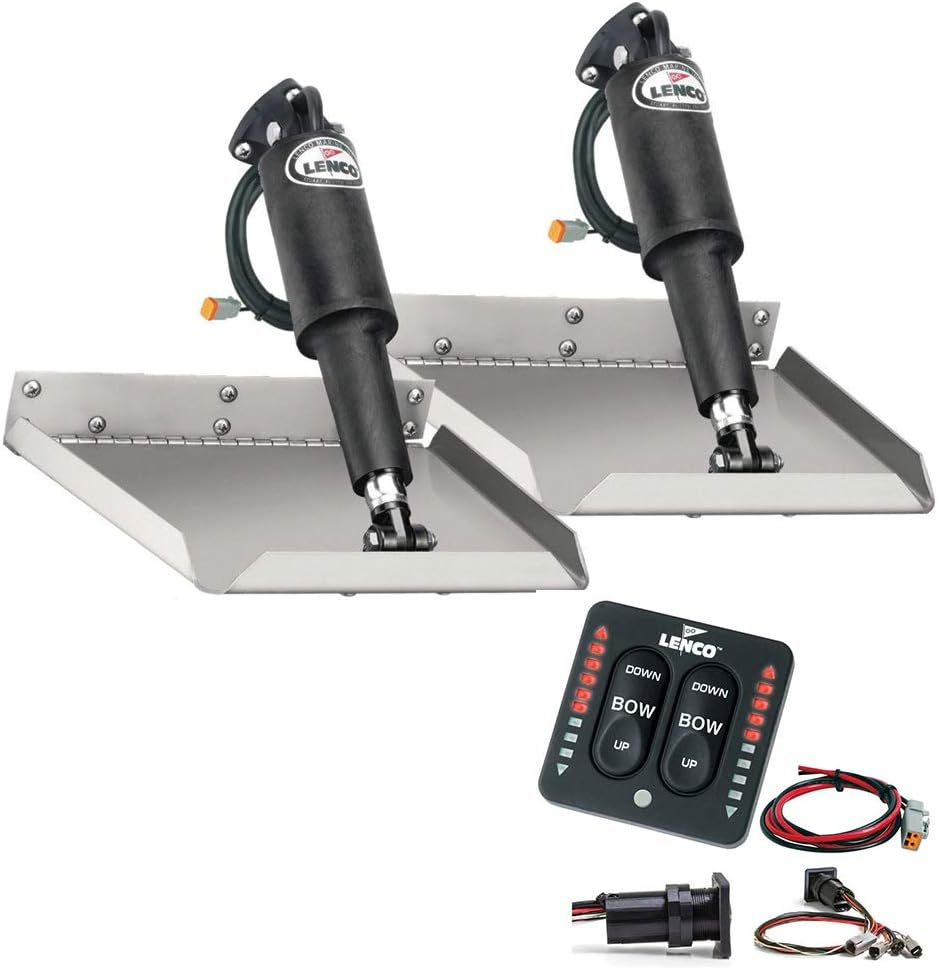

The Lenco TT9X12EI Edge Mount Trim Tab Kit delivers superior boat control and performance for vessels 16-25 feet in length. This complete system combines Lenco's advanced electric trim tabs with an intelligent LED indicator switch for precise, effortless adjustment on the water.
Advanced Electric Actuator Technology:
Lenco's ball screw design provides three times more power than traditional hydraulic systems with instant response and exceptional reliability. The fully submersible actuators feature waterproof Deutsch plug-and-play connections and come with 6-foot leads plus 20-foot extension harnesses for flexible installation. Edge mount design requires only 13.5 inches of transom height—4 inches less than standard mount systems—making them ideal for boats with limited transom space.
Premium Trim Tab Specifications:
- Blade dimensions: 9 inches x 12 inches, constructed from 12-gauge stainless steel with smooth finish
- Hinge height: 2 inches for optimal performance
- Minimum transom height required: 13.5 inches
- CE certified for fuel efficiency and safety
- Compatible with any boat hull design
Intelligent LED Indicator Switch:
The included waterproof tactile switch features LED indicator lights that show exact trim tab position at all times. A backlit keypad automatically illuminates for night operation, while a built-in photo eye adjusts indicator brightness based on ambient light conditions. The over-molded connector ensures complete water protection, and the system includes built-in retractor and self-check features for reliable operation on 12V and 24V systems.
Complete Kit Includes:
- Two 9x12-inch stainless steel trim tab blades
- Two electric actuators with waterproof connections and extension harnesses
- Two upper mounting brackets with gland seals and two lower mounting brackets
- LED indicator switch with sealed keypad, control box, and 36-inch power pigtail
- All necessary stainless steel mounting hardware
- Owner's and installation manual
This system transforms boat handling by creating a smoother, drier ride with improved planing, reduced bow rise, and enhanced fuel efficiency across all speed ranges.
