The Simrad IS35 is a bonded digital gauge that transforms engine data, fuel efficiency metrics, and depth information into clear, actionable displays. Featuring a bright 3.5-inch optically bonded LCD with 320x240-pixel resolution, this digital instrument provides exceptional visibility in all conditions with white day mode for full sunlight and red night mode for low-light operation.
Key Features:
- 3.5-inch full-color optically bonded LCD display with LED backlight
- Automatic detection and display of NMEA 2000 connected equipment
- Monitor up to two engines per gauge with critical data including RPM, temperature, pressure, and trim
- Pre-set pages for engine monitoring, fuel economy, cruising, steering, and depth history
- Simple four-button interface for easy page navigation and settings adjustment
- Customizable data pages with analog-style gauges, bar graphs, and digital displays
- Fits standard 85mm (3-3/8") circular cutouts for direct gauge replacement
- Low-profile 8mm surface-mount design matches Glass Bridge styling
- Single-cable NMEA 2000 installation provides both power and data
- Optional flush-mount installation with rear-mounting bracket
Comprehensive Data Display:
When connected to your vessel's NMEA 2000 network, the IS35 automatically detects and displays information from engines, fuel flow sensors, GPS receivers, depth transducers, and other networked equipment. The dedicated cruising page features an analog-style RPM display with dual-engine support, bar graphs for trim and temperature, and digital readouts for speed, depth, and fuel data. The fuel economy page provides real-time fuel flow, consumption rate, fuel used and remaining, and miles per gallon to help optimize cruising efficiency.
Navigation and Depth Monitoring:

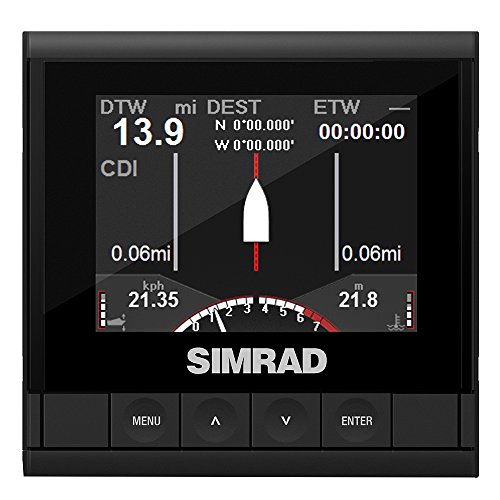

The steering page displays waypoint position, distance, and time to destination with a course deviation indicator (CDI) showing your boat's position relative to the plotted course. The depth history page provides a graphical representation of bottom contours along with current depth and water temperature readings when networked with a compatible depth transducer or multifunction display.
The IS35 connects to any marine engine supporting NMEA 2000 protocol, with optional J1939 to NMEA 2000 converter available for other engine types. This digital gauge offers a hassle-free upgrade path for new builds and refits, replacing traditional analog instruments with modern digital functionality.
