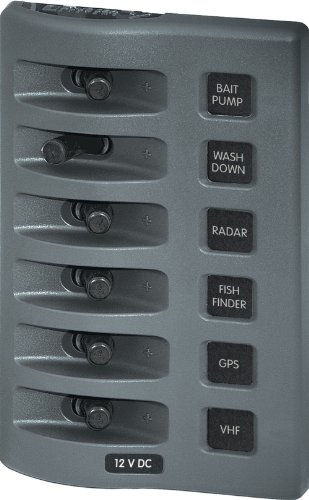

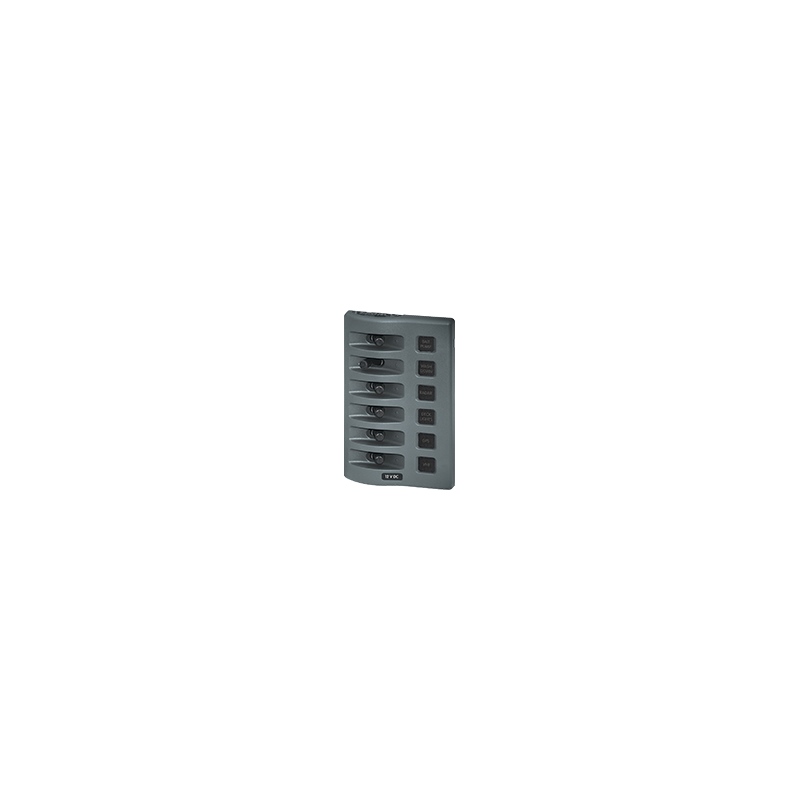

A rugged switch panel that is ideal for flybridge or open cockpit installations
WeatherDeck® waterproof panels are ready to take on the harshest of environments. They can be oriented in any of four different ways to expand your mounting location options. Included square circuit labels are designed to be placed above or below in the horizontal configuration, and to the right or left in the vertical. Rugged UV stabilized waterproof boots cover and protect switch toggles.
Key Features
- Rated IP67 from the face when installed with supplied gasket
- IP67 rated for immersion in 1 meter for 30 minutes
- Ideal for flybridge and open cockpit applications
- Lifetime warranty
Specifications
- Weatherproof: waterproof
- Positions: 6
- Voltage: 12V, 24V
- Panel Cumulative Rating: 45A
- Switch Rating: 15A @12V per circuit
- Approvals: CE, IP67
- Dimensions: 6"H x 3 7/8"W x 2 1/2"D
