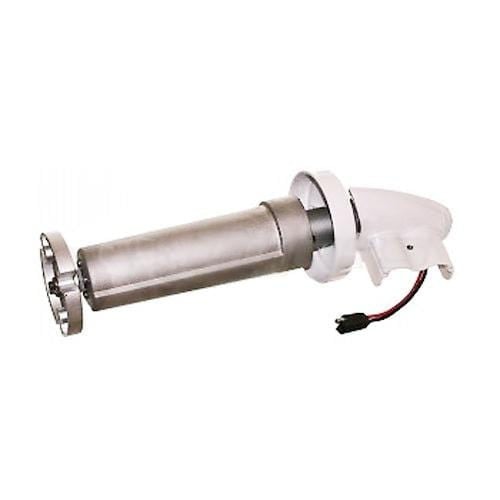

Dometic 3307923115B WeatherPro Power Awning RH Drive Assembly Polar White

The Dometic 3307923115B is a right-hand drive assembly designed for Dometic A&E WeatherPro Series power patio awnings. This motorized torsion assembly replaces worn or aging drive components, providing reliable electric operation for extending and retracting your RV awning.

Key Features:

• Right-hand (RH) drive assembly with integrated 12V DC motor
• Polar white end cap finish to match awning aesthetics
• Constructed with high-stability composite materials resistant to rust, corrosion, and UV damage
• Includes pre-installed stabilizer and three blind rivets for secure installation
• Motor connector plug integrates with existing wiring harness
• 13.5-inch overall length, operates on 12V DC / 15 amp power

Compatibility:

This drive assembly fits Dometic WeatherPro Series power patio awnings including models 805, 815, 825, 835, 845, 855, 865, 875, 885, and 905. The assembly insterts into the right end of the roller tube and connects to the front channel hardware.

Installation:

The torsion assembly features a straightforward installation process with pre-installed stabilizers. Three blind rivets secure the assembly to the roller tube via the end cap. The motor connector plug provides quick connection to your awning's power supply with red positive and black negative wires.
