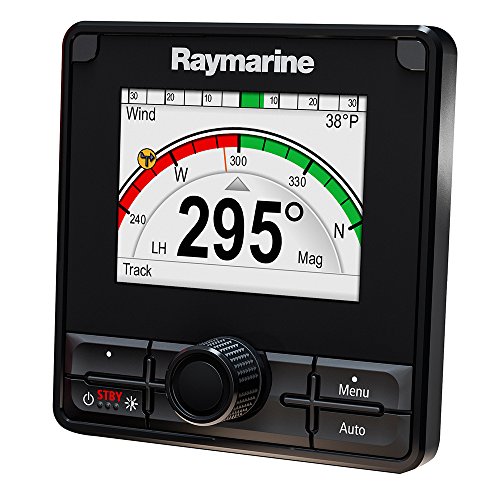

Rotary autopilot control designed for powerboats.
This control head with a glass bridge industrial design compliments Raymarine eS and gS Series multi-function displays. All weather, low power, optically bonded display technology delivers brighter colors, sharper contrast, and a wide viewing angle. Easy to use LightHouse user interface with sculpted rubber keypad for precise operation in all conditions.
The p70Rs and features a vibrant color display and is powered by Raymarine's intuitive LightHouse user interface. LightHouse organizes all options into simple menu structures, so with Evolution's Automagic 3-step setup process you will be up and running in minutes.
Key Features
- 3.5" diagonal super bright oversized LCD screen for maximum visibility
- All weather, low power, optically bonded display technology delivers brighter colors, sharper contrast, and a wide 160° viewing angle
- Rotary control knob like a second steering wheel for powerboats
- Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
- Displays the pilot information in different formats with automatic 3-step setup for leisure, cruising and performance
- Simple system and group dimming / illumination
- Easy to use LightHouse user interface with sculpted rubber keypad for precise operation in all conditions
- SeaTalkng networking for seamless connectivity to Raymarine systems and NMEA2000 networks
- Glass bridge industrial design compliments Raymarine eS and gS Series multi-function displays
- Supplied with both black (eS Series style) and (e Series style) gunmetal bezels and protective suncover
Specifications
- Display Type: 16-bit Color TFT LCD
- Screen Size: 3.45"diag.
- Width: 4 3/8"
- Height: 4 5/8"
- Depth: 1 3/8"
- Cutout Size: 3 5/8"dia. x 2 3/16"D w/cable
- Horizontal Pixels: 320
- Vertical Pixels: 240
- Number of Colors: 64,000
- Data Interface: SeaTalkng, NMEA 2000,
- SeaTalk Voltage: 12V DC
- Amperage: 69mA no lighting, 134mA 100% illumination
- Waterproof Rating: IPX6 and IPX7
- Warranty: Three years (with product registration)
What's in the Box
- p70R Pilot Controller
- Bezels
- Gasket
- Suncover
- 4 x mounting screws
- Document pack
- SeaTalkng blanking plug
- SeaTalkng spur cable
