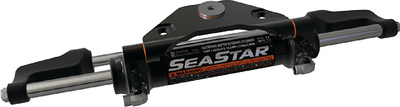

Teleflex HC53583 Front Pivot Mount Hydraulic Steering Cylinder 8" Stroke

The Teleflex HC53583 is a front pivot mount hydraulic steering cylinder designed for outboard marine applications, featuring an 8-inch stroke and 8.34 cubic inch displacement. This updated cylinder incorporates significant improvements over previous models while maintaining compatibility with existing applications.

Key Features:

• Front mount balanced design for optimal steering response
• Enhanced barrel construction for increased durability
• Advanced sealing systems with superior compression set resistance
• Adjustable stainless steel O-ring fittings (ORB) for secure connections
• Modern styling with robust materials
• Includes HS5157 seal kit for maintenance

Application Guidelines:

Single Engine Installations: Suitable for engines up to 350 HP and 65 MPH maximum speed when used as a single cylinder. For applications over 300 HP or aggressive driving conditions, consider upgrading to HC63xx Pro series or HC6845S models.

Dual Engine Configurations: Non-counter rotating setups support up to 450 HP with single cylinder or 600 HP with dual cylinders (55 MPH max). Counter-rotating dual engines support up to 600 HP with either single or dual cylinder configurations. Use with HO60xx tiebar for dual engine applications.

Triple Engine Systems: Supports triple engine installations with one counter-rotating engine up to 900 HP maximum (55 MPH max) using dual or triple cylinder configurations with HO60xx tiebars.

This cylinder represents the latest engineering from Teleflex/Dometic, offering improved reliability and performance for demanding marine steering applications.
