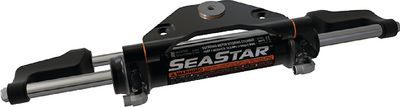

Teleflex HC53483 Hydraulic Steering Cylinder 8" Stroke Front Mount Outboard

The Teleflex HC53483 hydraulic steering cylinder is a front mount outboard steering cylinder featuring an 8-inch stroke and 8.34 cubic inch capacity. This updated cylinder fits the same applications as previous models while incorporating significant improvements including enhanced styling, a more robust barrel construction, and advanced sealing systems with excellent resistance to compression set. The cylinder is equipped with new adjustable stainless steel O-ring fittings (ORB) for reliable, leak-free connections.

Key Features:

• 8-inch stroke length with 8.34 cubic inch cylinder capacity
• Front mount design - balanced and most commonly used configuration
• Reinforced barrel construction for increased durability
• Advanced sealing materials with superior compression set resistance
• Adjustable stainless steel O-ring boss (ORB) fittings
• Compatible with HS5157 seal kit for serviceability
• Direct replacement for Dometic HC5348-3 and similar applications

Application Guidelines:

• Single Engines: Suitable for applications up to 350 HP maximum and 65 MPH maximum when used as a single cylinder system
• Dual Engine Non-Counter Rotating: Single cylinder configuration supports up to 450 HP and 55 MPH maximum; dual cylinder setup handles up to 600 HP and 55 MPH maximum (requires HO60xx series tiebar)
• Dual Engine Counter Rotating: Single cylinder supports up to 600 HP and 55 MPH maximum; dual cylinder configuration handles up to 600 HP and 55 MPH maximum (requires HO60xx series tiebar)
• Triple Engine Applications: Dual or triple cylinder configurations support up to 900 HP and 55 MPH maximum (requires HO60xx series tiebars)

This front mount hydraulic steering cylinder is designed for reliable performance in marine outboard applications. For boats driven aggressively, used in severe conditions, or equipped with engines exceeding 300 HP, consult manufacturer recommendations for specialized steering equipment.
