Jabsco 37068-2000 Vented Loop Solenoid Valve for Electric Marine Toilets

The Jabsco 37068-2000 is a vented loop solenoid valve designed specifically for use with Jabsco 37010 series electric marine toilets installed below the waterline. This valve ensures maximum electric toilet performance and prime-ability when installing a vented loop in the inlet hose, preventing siphoning issues that can lead to flooding.

Key Features:

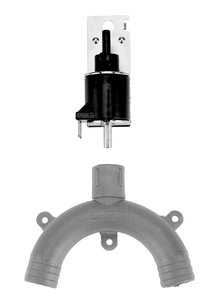

• Attaches directly to Jabsco vented loops and closes whenever the toilet pump is operated to ensure full pump priming
• Compatible with 12, 24, or 32V DC electrical systems
• Connects to the air inlet of the vented loop using heavy-wall 3/16" tube
• Wired in parallel with the toilet motor by connecting to the flush switch and battery ground
• Compatible with Jabsco 29015-0000 and 29295-1011 vented loops

Installation Notes:

• Install the vented loop on inlet plumbing rising at least 8" above the highest waterline level
• Valve may be mounted in any convenient location higher than the top of the vented loop
• Ensure tubing drops continually from valve to vent without loops or kinks to prevent water pockets

Important: When used in 24 or 32V applications, duty cycles longer than one minute are not recommended as they can damage the solenoid. Vented loop not included.
