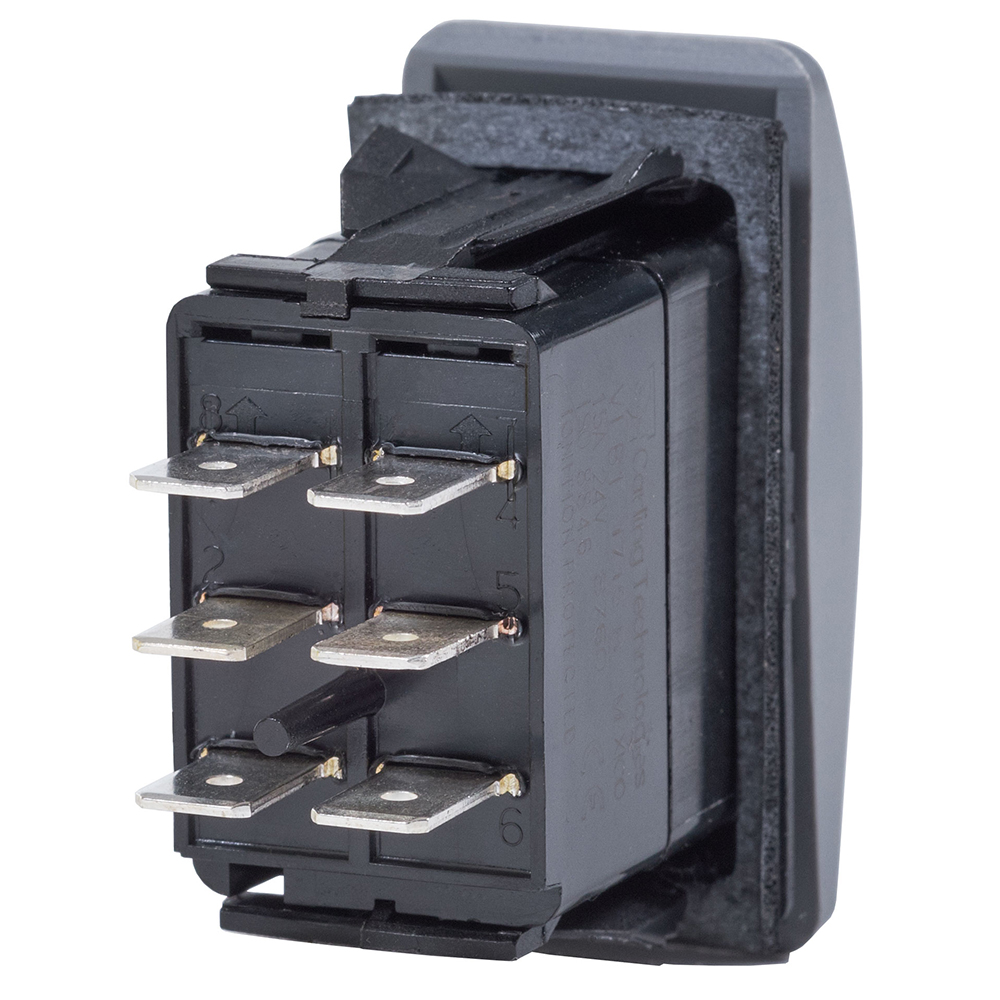

Blue Sea Systems 7938 Contura II DPDT Rocker Switch (ON)-OFF-(ON)

The Blue Sea Systems 7938 Contura II is a heavy-duty double pole/double throw (DPDT) rocker switch designed for marine and mobile applications. This momentary switch features an (ON)-OFF-(ON) action, returning to the center OFF position when released from either side—ideal for controlling reversible equipment like powered hatches, windlasses, and trim tabs.

Key Features:

• DPDT (Double Pole/Double Throw) configuration for reversible motor control
• Momentary (ON)-OFF-(ON) action with spring return to center OFF position
• Black Contura II actuator with no embedded LEDs
• Rated 20A at 12V DC or 15A at 24V DC
• Engineered to withstand vibration, shock, thermoshock, moisture, and salt spray
• Internal and external gasket panel seals for water resistance
• Mounts in Blue Sea Systems Contura Water Resistant Panels and Contura Switch Mounting Panels
• LED backlight rated for 100,000 hours at half brightness (18mA operating current)
• Operating temperature range: -40°C to 85°C (-40°F to 185°F)

Constructed to meet the demanding requirements of marine environments, this switch provides reliable control for reversible equipment where momentary activation is required. The compact design weighs just 0.09 lbs and integrates seamlessly with Blue Sea Systems' Contura panel mounting systems.
