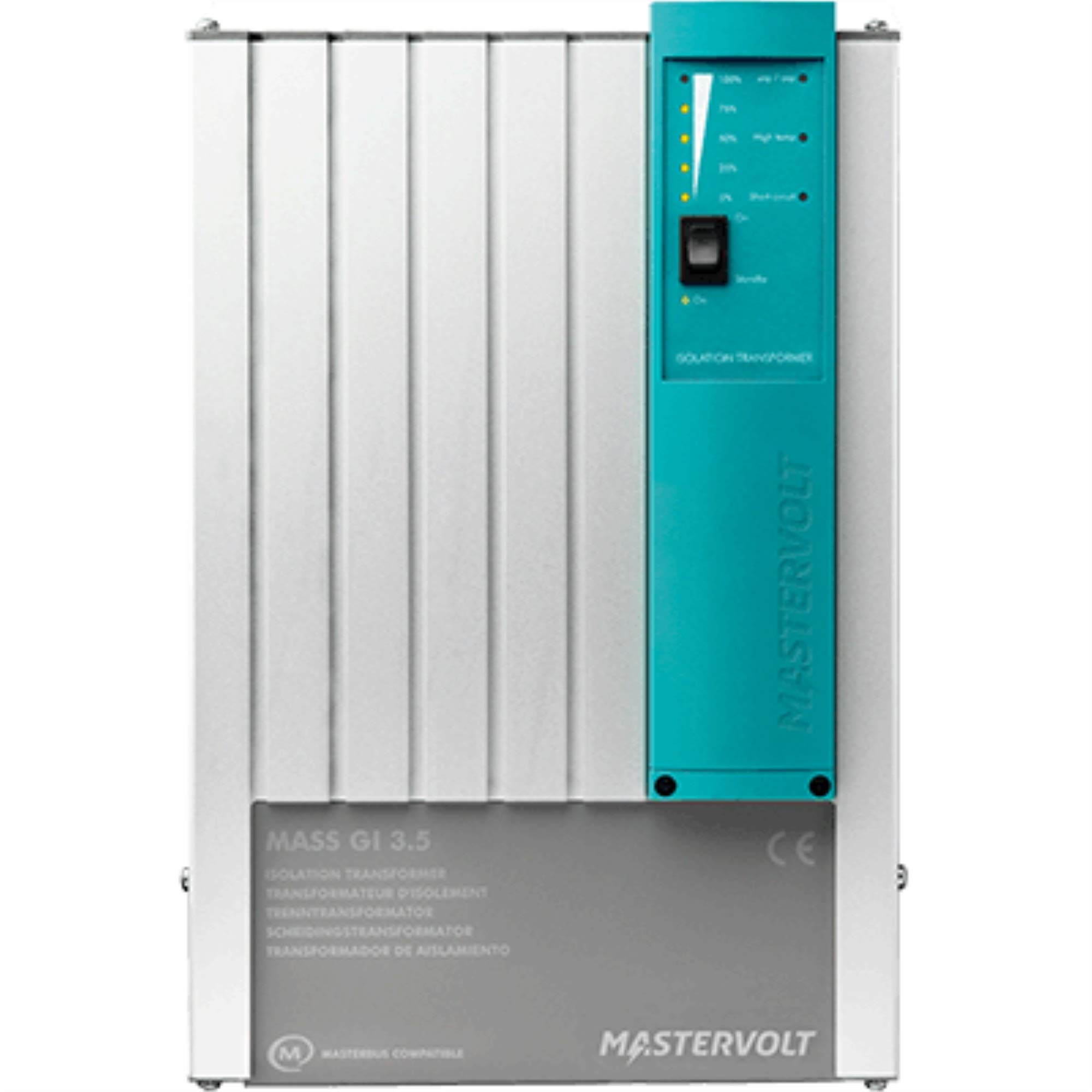

Mastervolt 88000355 Mass GI 3.5 Marine Isolation Transformer 3500W 16A

The Mastervolt Mass GI 3.5 is a high-frequency solid-state marine isolation transformer designed to provide a safe, galvanically isolated connection between shore power and your vessel's onboard AC electrical system. By electrically isolating the onboard AC system from shore power, it prevents electrochemical corrosion of underwater metal fittings and hull hardware while maintaining the safety ground provided by the shore power connection — a critical protection for any boat, and especially important on metal-hulled vessels.

Unlike traditional low-frequency isolation transformers, the Mass GI 3.5 uses advanced high-frequency switching technology, making it 75% lighter and 60% smaller than comparable conventional units. Its robust aluminum enclosure requires no rubber anti-vibration mounts, as the unit produces no hum or vibration during operation.

Key Features:

• High-frequency solid-state design — no heavy iron core transformer
• Integrated automatic Soft Start eliminates high inrush currents when connecting to shore power
• Wide input voltage range: 90–255V AC, 45–65 Hz — compatible with both 120V and 230V AC systems worldwide
• Rated at 3,500 watts (3.5 kVA) / 16A @ 230V
• Compact aluminum housing — mounts in any orientation (wall or floor)
• No humming, no vibration — no rubber mounts required
• Onboard LED indicators display load level and overload status
• Remote control capable with optional automatic generator start on AC overload
• Expandable: up to 4 units can be parallel-coupled — two units provide 32A/7 kW, four units provide 64A/14 kW

Specifications:

• Nominal Power: 3,500 VA (3.5 kVA)
• Input/Output Voltage: 90–255V AC
• Frequency Range: 45–65 Hz
• Current Rating: 16A @ 230V
• Dimensions: 13.4" x 10.3" x 5.7"
• Weight: 13.2 lbs
• Enclosure: Aluminum alloy

The Mastervolt Mass GI 3.5 is the ideal shore power isolation solution for cruisers, liveaboards, and performance vessels seeking maximum corrosion protection in a compact, lightweight package.
