ACR Electronics 1951 RCL-100 LED Remote Control Searchlight Kit with Controller

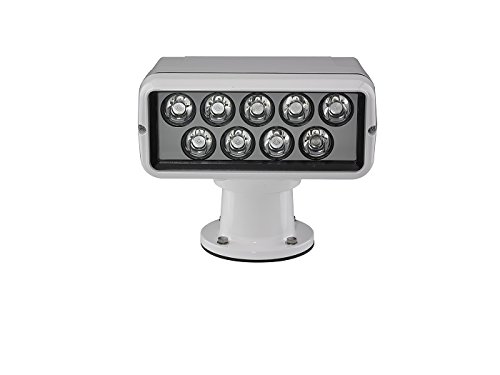

The ACR Electronics RCL-100 LED Searchlight delivers professional-grade marine illumination with a powerful 9-LED array that generates over 220,000 peak candela of light output. This rugged searchlight continues to utilize the same proven design as the original RCL-100D, but incorporates an efficient LED array that provides exceptional visibility for navigation, search and rescue operations, and low-light conditions on sport yachts, mega-yachts, sport fishers, and light commercial vessels.

Key Features:

• Long-life LED array rated for over 40,000 hours of operation
• Reduces power consumption demand by up to 50% on 12V vessels
• 360° continuous rotation with two-speed motor and elevation control
• Beam angle of 7° with elevation angles of 9° up and 17° down
• Two-speed rotation: fast 31° per second, slow 20° per second
• Constructed from rugged, triple-primed, marine-grade die-cast aluminum
• Die cast aluminum housing and glass lens sealed against the elements
• Internal elevation mechanism for precise pitch control while protecting from weather
• Weather resistant and operates with 12 to 24V DC power
• Maximum current draw of 3.5 amps with 5-amp fuse installed
• Exclusive XRCiZ™ feature automatically rotates every 30 days to prevent corrosion
• State-of-the-art controller electronics protect the light from most power surges

Complete Kit Includes:

• RCL-100 LED searchlight assembly
• URC-103 Master Controller with surge protection
• URP-102 Point Pad fingertip remote control (surface/flush mount options)
• 15-foot (4.57 m) wiring harness
• Installation hardware and mounting gaskets

The Point Pad controller provides fingertip operation from anywhere on the vessel, and the system supports up to three Point Pad units for multi-station control. Unit dimensions are 8" x 9" x 8" (20.3 x 22.9 x 20.3 cm) with a sleek, low-profile design that complements any vessel. The XRCiZ™ self-maintenance feature ensures all bearing surfaces remain free of corrosion and all electrical contacts stay functional for reliable, long-term performance in harsh marine environments.
