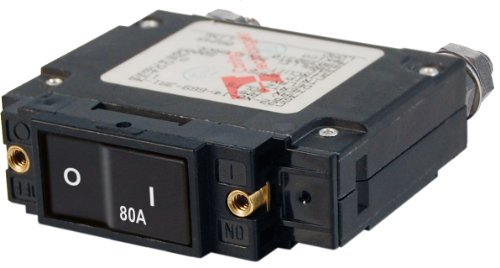

Blue Sea Systems 7548 C-Series Flat Rocker Circuit Breaker 80A Single Pole

The Blue Sea Systems 7548 C-Series Flat Rocker Circuit Breaker delivers reliable 80-amp overcurrent protection in a single-pole design ideal for high-draw marine electrical systems. This magnetic hydraulic circuit breaker combines switching and circuit protection into one compact device, making it perfect for inverters, bow thrusters, windlasses, and other demanding applications aboard boats and RVs.

Key Features:

• Flush rocker actuator in "ON" position eliminates accidental switching
• Color-coded actuator clearly indicates "OFF" position for safety
• Trip-free design cannot be held closed after circuit trip
• Ignition protected for safe installation on gasoline-powered vessels
• Magnetic hydraulic technology provides accurate overcurrent protection
• Rated for both AC and DC applications up to 240V AC / 48V DC

Technical Specifications:

• Amperage Rating: 80A AC / 80A DC
• Maximum Voltage: 240V AC / 48V DC
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
• Operating Temperature Range: -40°C to 85°C
• Terminal Stud: 1/4-20 tin-plated brass
• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Mounting Hardware: #6-32 stainless steel screws, 6 in-lb torque
• Switching Cycle Life: 10,000 cycles
• Weight: 0.38 lbs (0.17 kg)

The flat rocker design provides a clean, professional appearance while the robust construction ensures long-term reliability in harsh marine environments. Backed by Blue Sea Systems' reputation for quality marine electrical components.
