A universal design makes it easy to install yourself.

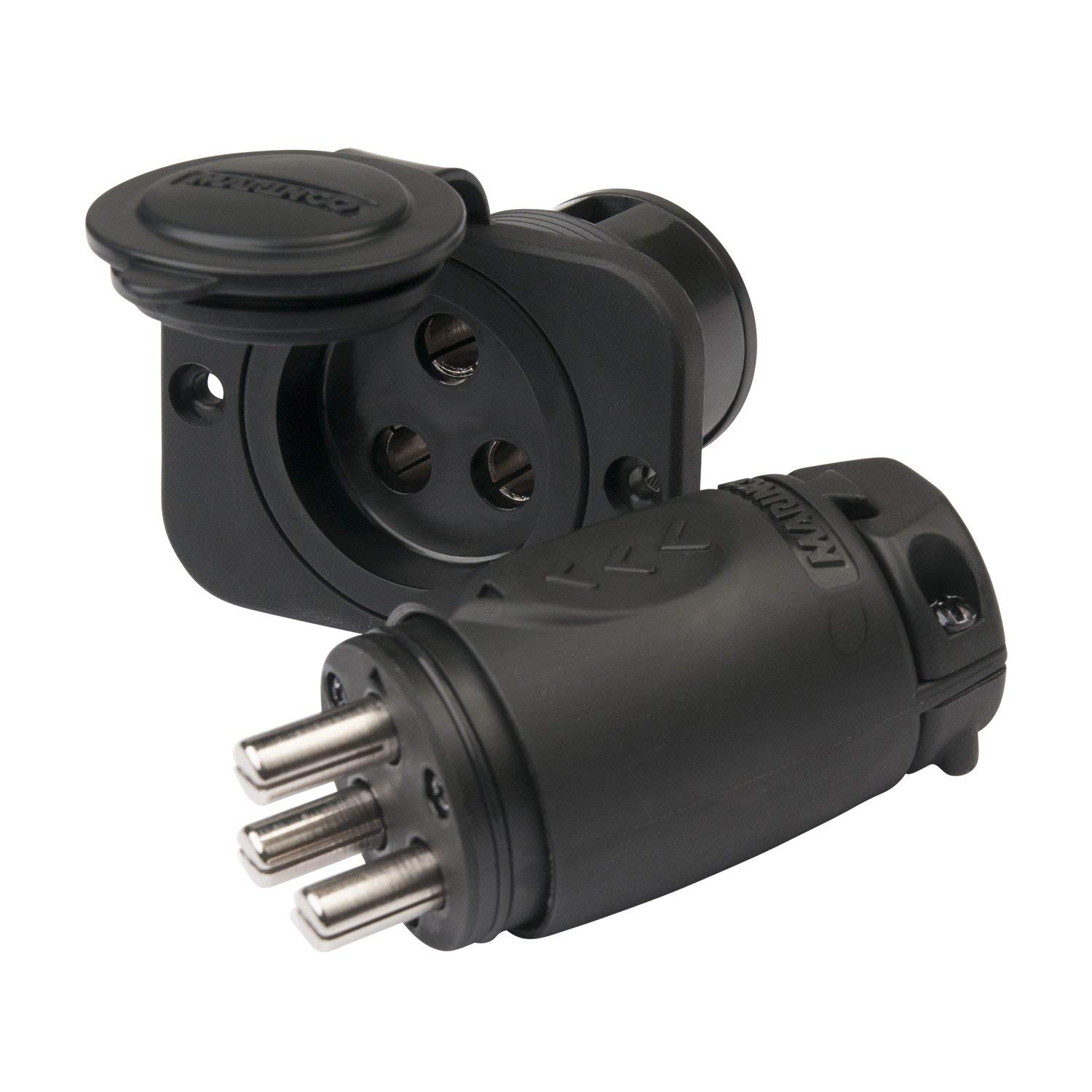

The Marinco 70A Trolling Motor Plug and Receptacle is designed with a compact, waterproof footprint for modern trolling motors. The receptacle is keyed to mate with the plug which features integrated strain relief and thumbprint locator. Corrosion-resistant components and watertight sealing cap ensure your system will withstand harsh marine environments.
Key Features
- 70A continuous rating
- Universal design for 2- or 3-wire configuration of 12V, 24V, 12/24V, 24/36V, 36V or 48V systems
- Floating pin design for maximum connectivity and durability
- Corrosion-resistant, plated brass electrical components
- Receptacle has watertight sealing cap
- Plug has integrated strain relief and keyed design with thumbprint locator
- Accepts up to 6 gauge wire
Receptacle Specifications
- Gender: Female
- Terminals: Double set screw with ferrule
- Wire Size: 8 gauge and 6 gauge. (4 gauge can be used with 4AWG ferulles, sold separately)
- Mounting Hole Size: 1 3/4" diameter
- Mounting Thickness: 1" maximum
- Receptacle Body: Nylon
- Contacts: Nickel plated brass
- Mounting Screws: Stainless steel with black oxide coating
- Terminal Screws: Nickel plated steel

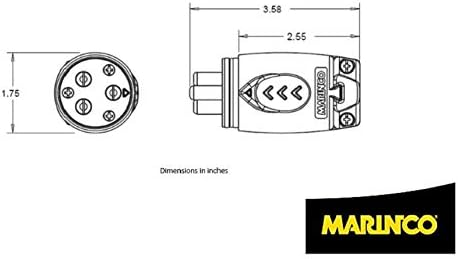

Plug Specifications
- Gender: Male
- Terminals: Double set screw with ferrule
- Wire Size: 8 gauge and 6 gauge
- Plug Body: Nylon
- Contacts: Nickel plated brass
- Body Screws: Stainless steel with black oxide coating
- Terminal Screws: Nickel plated steel
