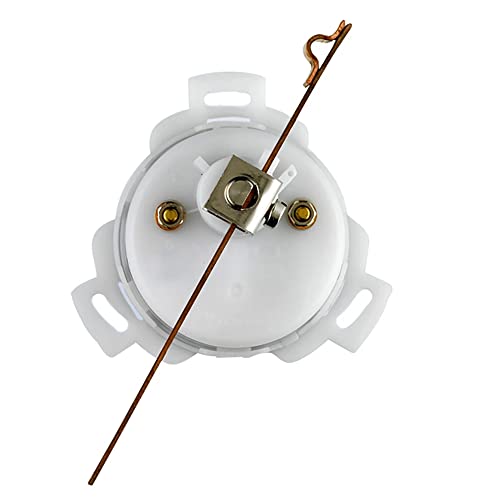

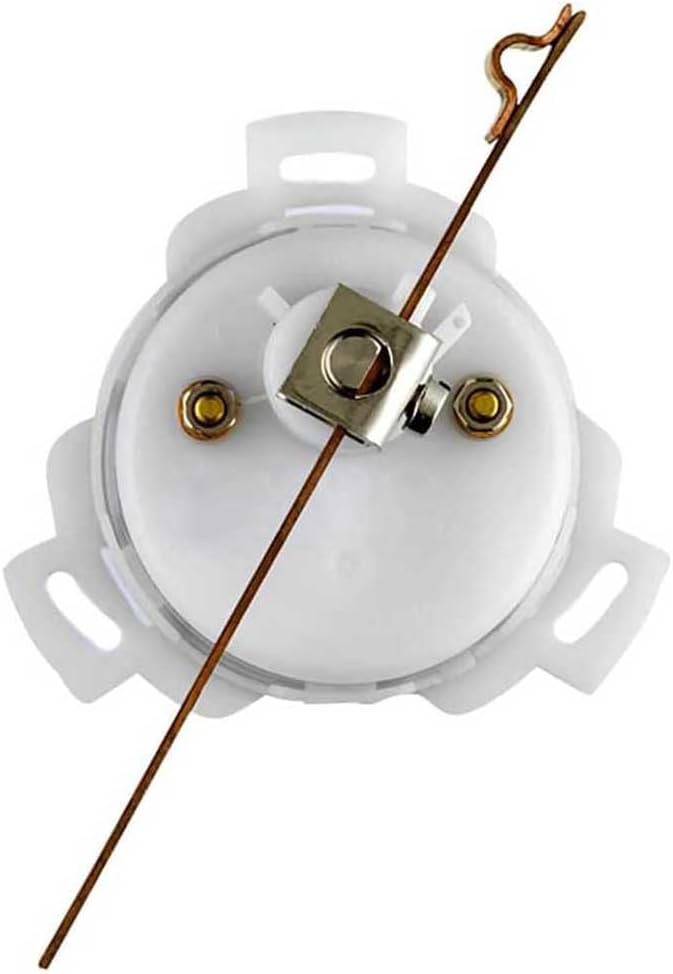

VDO Gauges A2C1102950001 Veratron Rudder Angle Sensor Single Station 12/24V

The VDO Veratron Rudder Angle Sensor provides precise rudder position feedback for single station marine applications. This analog sensor connects directly to compatible gauges and displays to give you real-time rudder angle information, enhancing boat handling awareness and control.

Key Features:

• Measurement range of 45° port to 45° starboard for full rudder travel monitoring
• Analog signal output: 3-180 Ohm resistance for reliable gauge communication
• Wide operating voltage: 6-24V DC for compatibility with 12V and 24V systems
• Simple 2-wire installation with insulated return signal
• Designed for single station applications
• Durable marine-grade construction for harsh saltwater environments

Technical Specifications:

• Measurement Range: 45° - 0° - 45°
• Resistance Value: 3-180 Ohm
• Operating Voltage: 6-24V DC
• Communication: Analog
• Wiring: 2-wire system
• Sensor Signal: Insulated return

This rudder angle sensor is sold individually and requires compatible VDO/Veratron instrumentation for display. Proper installation ensures accurate rudder position feedback for improved vessel control and situational awareness.
