High-powered professional-grade CHIRP sonar with three independent channels.

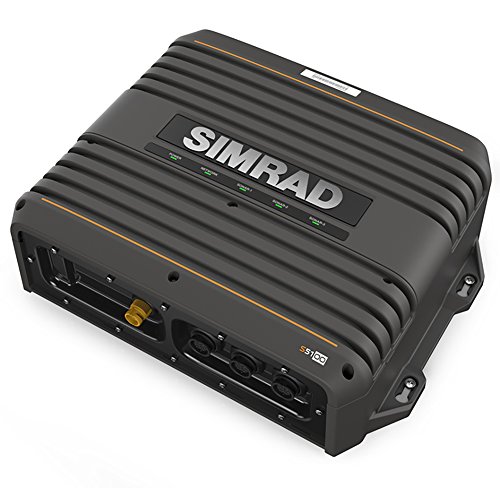

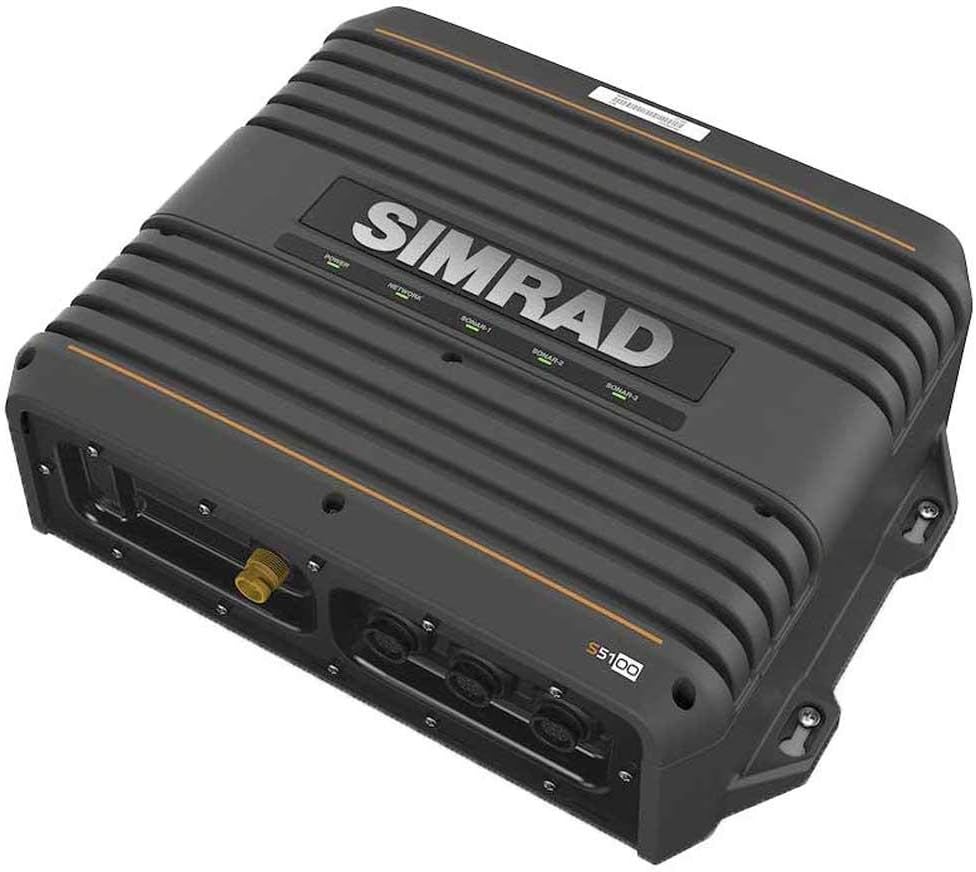

The S5100 high-performance CHIRP sonar module features three fully independent channels able to deliver high-resolution sonar coverage across multiple depth ranges, precision-focused for offshore sportfishing anglers.
Up to three transducers: Connect three single-channel transducers, or pair one dual-channel and one single-channel, to create the perfect sonar coverage for the areas you fish and the species you target.
Split your view: Simultaneous split-screen viewing capability puts you in complete control of the water column, while advanced processing technology allows you to fish with noise-free clarity at all depth ranges without ever losing bottom depth tracking.
Pick your favorite transducers: Mix and match your favorite transducer coverage and transmit power for wide and narrow beam-widths to reveal more fish, detecting small and tightly spaced fish and identifying thermoclines, or adjust specific CHIRP frequencies from 28 to 250kHz to precisely target specific depths producing big, crisp arches with clear target separation.
Note: The S5100 is not recommended for use with older Simrad multi-function displays including: NSO Gen1, NSS Sport and NSE.
Key Features
- Three fully independent sonar channels deliver high-resolution coverage
- Noise-free clarity at all depth ranges
- Combine any three frequency ranges to target multiple depths, including Ultra-Low, Low, Medium, or High CHIRP
- Compatible with wide-angle CHIRP transducers for greater coverage of the water column
- Simultaneous split-screen viewing of multiple depth ranges on your display
- Maximum depth of 10,000' (depending on choice of transducer)
- Easy to install with three plug-and-play 9-pin transducer connectors
- Compatible with Simrad NSS evo3 and NSS evo2 multi-function displays, NSO evo2 systems, and S2000-series fishfinders
Specifications
- Compatible Displays: NSS evo3, evo3, NSO evo2, S2000-series
- Receivers/Transmitters: Three broadband-tuner receivers; three tuned CHIRP transmitters
- Frequency: 25-250kHz
- Transmit Power: 600W-3kW (RMS) dependent on transducer
- Max. Depth: 10,000'
- Transducers: Sold separately
- Voltage: 9-32V DC
- Data Interface: Ethernet
- Dimensions: 12 5/8"W x 3 7/8"H x 9 7/8"D
- Waterproof Rating: IPX5
What's in the Box
- S5100
- (4x) screws, Phillips stainless steel, 25 mm (1")
- Power cable, 2 m (6.5 ft)
- Ethernet cable, 1.8 m (6 ft)
- (3x) 7 to 9 pin adapter cables, 0.6 m (2 ft)
- Fuse holder
- Fuse, 5 Amp
- Documentation pack
Transducer Options
This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
| Transducer Type: XSONIC Connector CHIRP | Reading(s) | Transmit Power | Max. Depth | Material | Model |
| xSonic TM275LH-W Transom Mount Low/High CHIRP Transducer | Depth/Temp | 1 kHz | 4,000' Low CHIRP | Urethane | |
| xSonic B275LH-W Bronze Thru-Hull Low/High CHIRP Transducer | Depth/Temp | 1 kHz | 4,000' Low CHIRP | Bronze | |
| xSonic CM275LH-W Tank-Mounted Low/High CHIRP Transducer | Depth/Temp | 1 kHz | 4,000' Low CHIRP | Urethane | |
| xSonic R509LH-W Thru-Hull Low/High CHIRP Transducer | Depth/Temp | 2-3 kHz | 8,000' Low CHIRP | Urethane | |
| xSonic SS175L Stainless Steel 0° Tilted Element Thru-Hull Low CHIRP Transducer | Depth/Temp | 1 kHz | 4,000' Low CHIRP | Stainless Steel | |
| xSonic SS175L Stainless Steel 12° Titled Element Thru-Hull Low CHIRP Transducer | Depth/Temp | 1 kHz | 4,000' Low CHIRP | Stainless Steel | |
| xSonic SS175L Stainless Steel 20° Titled Element Thru-Hull Low CHIRP Transducer | Depth/Temp | 1 kHz | 4,000' Low CHIRP | Stainless Steel | |
| xSonic SS175M Stainless Steel 0° Tilted Element Thru-Hull Medium CHIRP Transducer | Depth/Temp | 1 kHz | 1,500' Medium CHIRP | Stainless Steel | |
| xSonic SS175M Stainless Steel 12° Tilted Element Thru-Hull Medium CHIRP Transducer | Depth/Temp | 1 kHz | 1,500' Medium CHIRP | Stainless Steel | |
| xSonic SS175M Stainless Steel 20° Tilted Element Thru-Hull Medium CHIRP Transducer | Depth/Temp | 1 kHz | 1,500' Medium CHIRP | Stainless Steel | |
| xSonic SS175H-W Stainless Steel 0° Tilted Element Thru-Hull High CHIRP Transducer | Depth/Temp | 1 kHz | 1,000' | Stainless Steel | |
| xSonic SS175H-W Stainless Steel 12° Tilted Element Thru-Hull High CHIRP Transducer | Depth/Temp | 1 kHz | 1,000' High CHIRP | Stainless Steel | |
| xSonic SS175H-W Stainless Steel 20° Tilted Element Thru-Hull High CHIRP Transducer | Depth/Temp | 1 kHz | 1,000' High CHIRP | Stainless Steel | |
| xSonic SS260 Stainless Steel Thru-Hull 50/200kHz Transducer | Depth/Temp | 1 kHz | 3,000' @ 50 kHz | Stainless Steel | |
| xSonic SS60 Stainless Steel 0° Tilted Element Thru Hull 50/200kHz Transducer | Depth/Temp | 600 W | 3,000' @ 50 kHz | Stainless Steel | |
| xSonic SS60 Stainless Steel 12° Tilted Element Thru Hull 50/200kHz Transducer | Depth/Temp | 600 W | 3,000' @ 50 kHz | Stainless Steel | |
| xSonic SS60 Stainless Steel 20° Tilted Element Thru Hull 50/200kHz Transducer | Depth/Temp | 600 W | 3,000' @ 50 kHz | Stainless Steel | |
| xSonic TM260 Transom Mount 50/200kHz Transducer | Depth/Temp | 1 kHz | 3,000' @ 50 kHz | Urethane | |
| xSonic Bronze HDI 0° Tilted Element Thru-Hull Transducer | Depth/Temp | 600 W | 3,000' @ 50 kHz 300' @ 455 kHz | Bronze | |
| xSonic Bronze HDI 12° Tilted Element Thru-Hull Transducer | Depth/Temp | 600 W | 3,000' @ 50 kHz 300' @ 455 kHz | Bronze | |
| xSonic Bronze HDI 20° Tilted Element Thru-Hull Transducer | Depth/Temp | 600 W | 3,000' @ 50 kHz 300' @ 455 kHz | Bronze | |
| xSonic SS75M Stainless Steel 0° Tilted Element Thru-Hull Medium CHIRP Transducer | Depth/Temp | 600 W | 1,000' | Stainless Steel | |
| xSonic SS75M Stainless Steel 12° Tilted Element Thru-Hull Medium CHIRP Transducer | Depth/Temp | 600 W | 1,500' Medium CHIRP | Stainless Steel | |
| xSonic SS75M Stainless Steel 20° Tilted Element Thru-Hull Medium CHIRP Transducer | Depth/Temp | 600 W | 1,500' Medium CHIRP | Stainless Steel | |
| xSonic SS75H Stainless Steel 0° Tilted Element Thru-Hull High CHIRP Transducer | Depth/Temp | 600 W | 1,000' High CHIRP | Stainless Steel | |
| xSonic SS75H Stainless Steel 12° Tilted Element Thru-Hull High CHIRP Transducer | Depth/Temp | 600 W | 1,000' High CHIRP | Stainless Steel | |
| xSonic SS75H Stainless Steel 20° Tilted Element Thru-Hull High CHIRP Transducer | Depth/Temp | N/A | 1,000' High CHIRP | Plastic | |
| xSonic M260 Plastic In-Hull 50/200kHz Transducer | Depth/Temp | 1 kHz | 3,000' @ 50 kHz | Plastic | |
| xSonic P319 Plastic Thru-Hull 50/200kHz Transducer | Depth/Temp | 600 W | 3,000' @ 50 kHz | Plastic | |
| xSonic SS164 Stainless Steel 0° Tilted Element Thru-Hull 50/200kHz Transducer | Depth/Temp | 1 kHz | 3,000' @ 50 kHz | Stainless Steel | |
| xSonic SS164 Stainless Steel 12° Tilted Element Thru-Hull 50/200kHz Transducer | Depth/Temp | 1 kHz | 3,000' @ 50 kHz | Stainless Steel | |
| xSonic SS164 Stainless Steel 20° Tilted Element Thru-Hull 50/200kHz Transducer | Depth/Temp | 1 kHz | 3,000' @ 50 kHz | Stainless Steel | |
| xSonic P66 Plastic 50/200kHz Transducer | Depth/Temp | 600 W | 3,000' @ 50 kHz | Plastic | |
| xSonic B150M Bronze 0° Tilted Element Thru-Hull Medium CHIRP Transducer | Depth/Temp | 300 W | 1,000 Medium CHIRP | Bronze | |
| xSonic B150M Bronze 12° Tilted Element Thru-Hull Medium CHIRP Transducer | Depth/Temp | 300 W | 1,000 Medium CHIRP | Bronze | |
| xSonic B150M Bronze 20° Tilted Element Thru-Hull Medium CHIRP Transducer | Depth/Temp | 300 W | 1,000 Medium CHIRP | Bronze | |
| Transducer Type: Accessories | Model |
| XSONIC Transducer Adaptor Cable | |
| XSONIC Transducer Adaptor Cable | |
