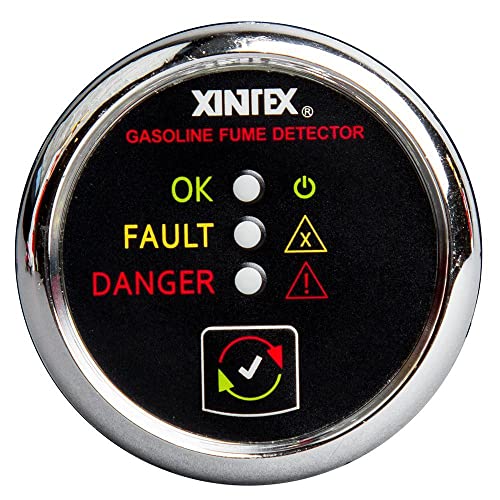

Fireboy G-1C-R Xintex Gasoline Fume Detector Single Channel with Sensor

The Fireboy G-1C-R Xintex Gasoline Fume Detector provides reliable monitoring of gasoline vapors in engine compartments, fuel storage areas, and other enclosed spaces where explosive fumes can accumulate. This single-channel detector features a chrome bezel display and operates on 12V or 24V DC systems, making it ideal for marine and RV applications.

Key Features:

• Single-channel monitoring with included gasoline sensor
• Audible 68 dB alarm horn and visual LED alert when Lower Explosive Level (LEL) is detected
• Simple installation with 20-foot extension cable included
• Chrome bezel display with 2-3/16" round face fits standard 2-1/16" gauge hole
• Wide operating voltage range: 9-30V DC for 12V or 24V systems
• Low current draw: 55mA nominal, 95mA maximum
• Operates in extreme temperatures from -40°F to 185°F

Technical Specifications:

• Operating Voltage: 9 to 30V DC (12V/24V compatible)
• Current Draw: 55mA nominal / 95mA maximum
• Operating Temperature Range: -40°F to 185°F (-40°C to 85°C)
• Alarm Horn Output: 68 dB
• Display Diameter: 2-3/16" (5.6 cm) round with chrome bezel
• Cutout Required: 2-1/16" (5.2 cm) round hole

Package Includes:

• G-1C-R fume detector unit with chrome bezel
• One (1) gasoline fuel sensor
• One (1) 20-foot extension cable
• Instruction manual

This detector provides essential safety monitoring for vessels and vehicles where gasoline is stored or used, alerting occupants before dangerous vapor concentrations can reach ignition levels.
