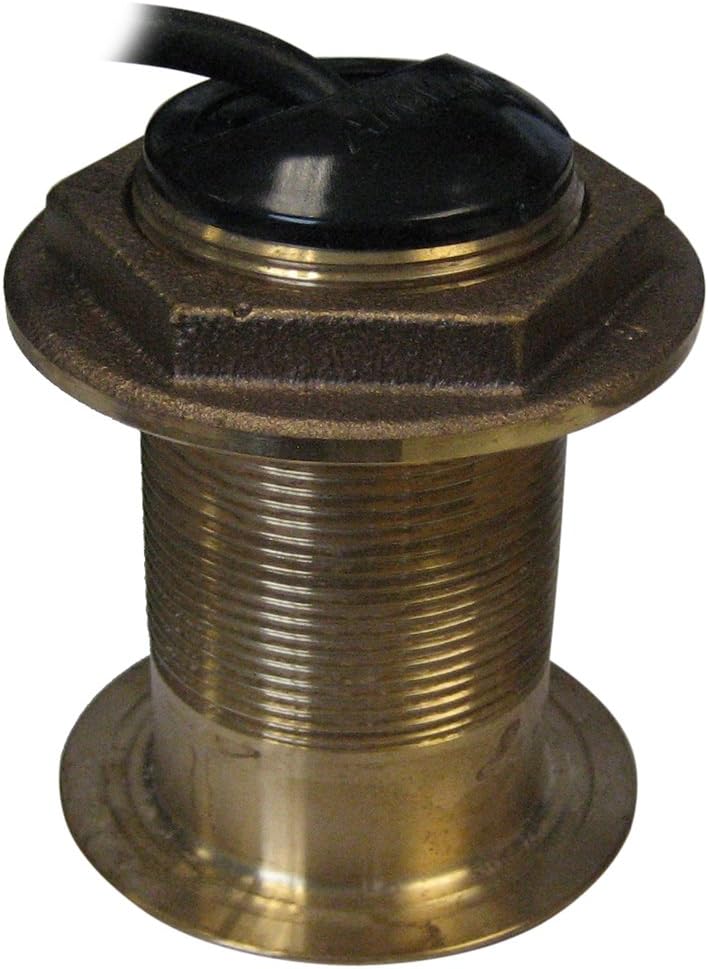

Si-Tex B-60-20-ES Bronze Thru-Hull Transducer with Temperature

The Si-Tex B-60-20-ES is a bronze thru-hull transducer designed for fishfinders and depth sounders with integrated temperature sensing. This dual-frequency transducer features a 20-degree tilted element for optimal performance on hulls with 16 to 24 degree deadrise angles.

Key Features:

• Bronze thru-hull construction for durability and corrosion resistance
• 20-degree tilted element optimized for 16-24 degree hull deadrise
• Dual-frequency operation: 50 kHz and 200 kHz
• Beam angles: 45 degrees at 50 kHz, 12 degrees at 200 kHz
• Integrated water temperature sensor
• Compatible with Si-Tex EC5F, EC7F, and ES502 fishfinder models

The 50 kHz frequency with its wide 45-degree beam provides excellent bottom coverage and target detection in deeper water, while the 200 kHz frequency with its narrow 12-degree beam offers superior detail and resolution in shallower depths. The built-in temperature sensor provides accurate water temperature readings to help locate fish and improve fishing success.
