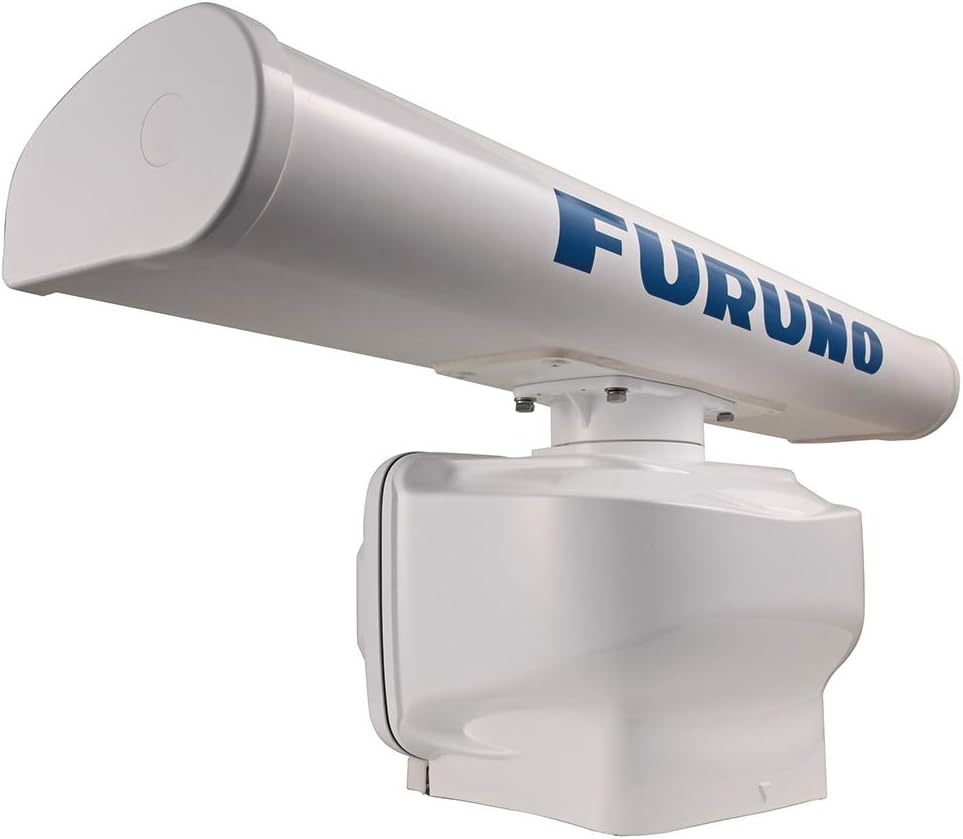

Furuno DRS12AX 12kW UHD Digital Radar 96nm Range for TZtouch

The Furuno DRS12AX "X-Class" represents a significant advancement in marine radar technology, delivering exceptional performance for both short and long-range detection up to 96 nautical miles. This 12kW UHD digital radar system is engineered specifically for NavNet TZtouch and TZtouch2 multi-function displays, providing professional-grade radar capabilities for serious mariners.

Enhanced Detection and Performance:

• 12kW transmitter power output for superior target detection at extended ranges
• Ultra-high definition digital signal processing for clearer, more detailed radar images
• Impressive minimum detection range of just 20 meters for close-quarters navigation
• Maximum range capability of 96 nautical miles for early detection of distant targets
• Fast Target Tracking™ technology instantly displays target course and speed vectors with a button press
• Bird Mode for locating feeding birds that indicate schools of fish

Improved Design and Installation:

The redesigned pedestal unit achieves a 20% weight reduction compared to previous models while incorporating an updated motor that operates at significantly lower noise levels. The innovative smart-connector cable system simplifies both installation and ongoing maintenance, with no need to open the pedestal unit during setup. This system eliminates the requirement for a separate power supply unit, reducing total installation costs and complexity.

System Configuration:

This radar processor unit is sold without antenna or cable, allowing you to select the optimal 3.5-foot, 4-foot, or 6-foot antenna array for your vessel. A separate signal/power cable is required for installation. The DRS12AX operates on 24V DC systems; vessels with 12V electrical systems will require a voltage converter. Compatible exclusively with NavNet TZtouch and NavNet TZtouch2 displays—not compatible with NavNet 3D or earlier NavNet models.
