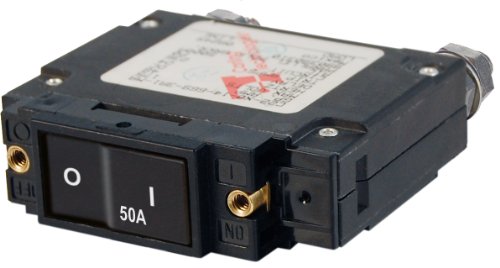

Blue Sea Systems 7546 C-Series Flat Rocker Circuit Breaker 50A Single Pole

The Blue Sea Systems 7546 C-Series Flat Rocker Circuit Breaker combines reliable overcurrent protection with intuitive switching functionality in a single compact device. Rated for 50 amps at both AC and DC voltages, this single-pole breaker is ideal for protecting high-draw marine equipment including inverters, bow thrusters, and windlasses.

Key Features:

• Flush-mounted rocker actuator in the ON position eliminates risk of accidental switching
• Colored actuator provides clear visual indication of OFF position
• Trip-free design cannot be held closed after circuit trip for enhanced safety
• Magnetic hydraulic trip mechanism provides reliable overcurrent protection
• Ignition protected for safe installation on gasoline-powered vessels
• High interrupt capacity: 5000A at 32V DC, 3000A at 120V AC, 3500A at 240V AC

Technical Specifications:

• Amperage Rating: 50A AC / 50A DC
• Maximum Voltage: 240V AC / 48V DC
• Actuator Style: Flat Rocker
• Poles: Single Pole
• Terminal Stud: 1/4-20 tin-plated brass with 35 in-lb torque rating
• Mounting Hardware: #6-32 stainless steel screws, 6 in-lb torque
• Operating Temperature Range: -40°C to 85°C
• Rated for 10,000 switching cycles
• Weight: 0.38 lbs

This circuit breaker integrates seamlessly into marine electrical systems, providing both manual switching control and automatic overcurrent protection in demanding marine environments.
