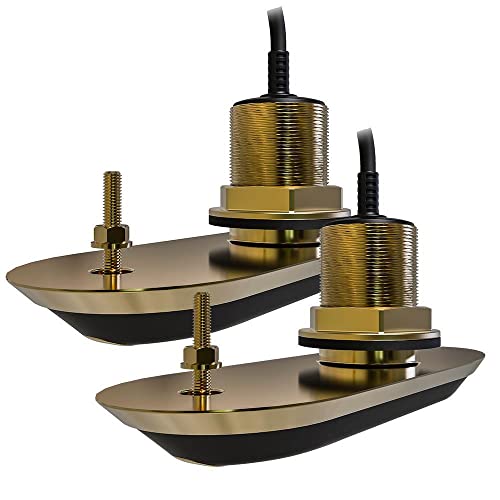

Raymarine T70318 RV-212 RealVision 3D Bronze Thru-Hull Transducer Pair 12 Degree

The Raymarine RV-212 Bronze Thru-Hull Transducer System delivers the ultimate sonar package for serious anglers and boaters. This paired transducer system combines CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D technology into a single installation, providing lifelike underwater imagery and exceptional fish targeting capabilities.

Key Features:

• Gyro-Stabilized RealVision 3D: Built-in attitude and heading reference system (AHRS) automatically compensates for vessel motion, delivering crystal-clear imagery even in waves, swells, and while maneuvering
• Wide Spectrum CHIRP Technology: Transmits on 60 different frequencies for superior fish identification and the most detailed sonar imagery available
• Full 180° Underwater Coverage: One transducer transmits port and downward, the other starboard and downward, ensuring complete coverage even on boats with deep keels or underwater obstructions
• No Fairing Blocks Required: Internal offset accommodates hull deadrise angles from 1° to 12°, simplifying installation on fiberglass or wooden hulls
• Low-Profile Design: Near-flush mount slips through water without drag or cavitation, perfect for trailered boats
• Powerful Four-Channel Sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, high frequency CHIRP, and 600W 50/200kHz traditional sonar
• Fast Response Temperature Sensor: Built-in water temperature monitoring provides quick, accurate readings

Technical Specifications:

• Compatibility: Raymarine Axiom displays

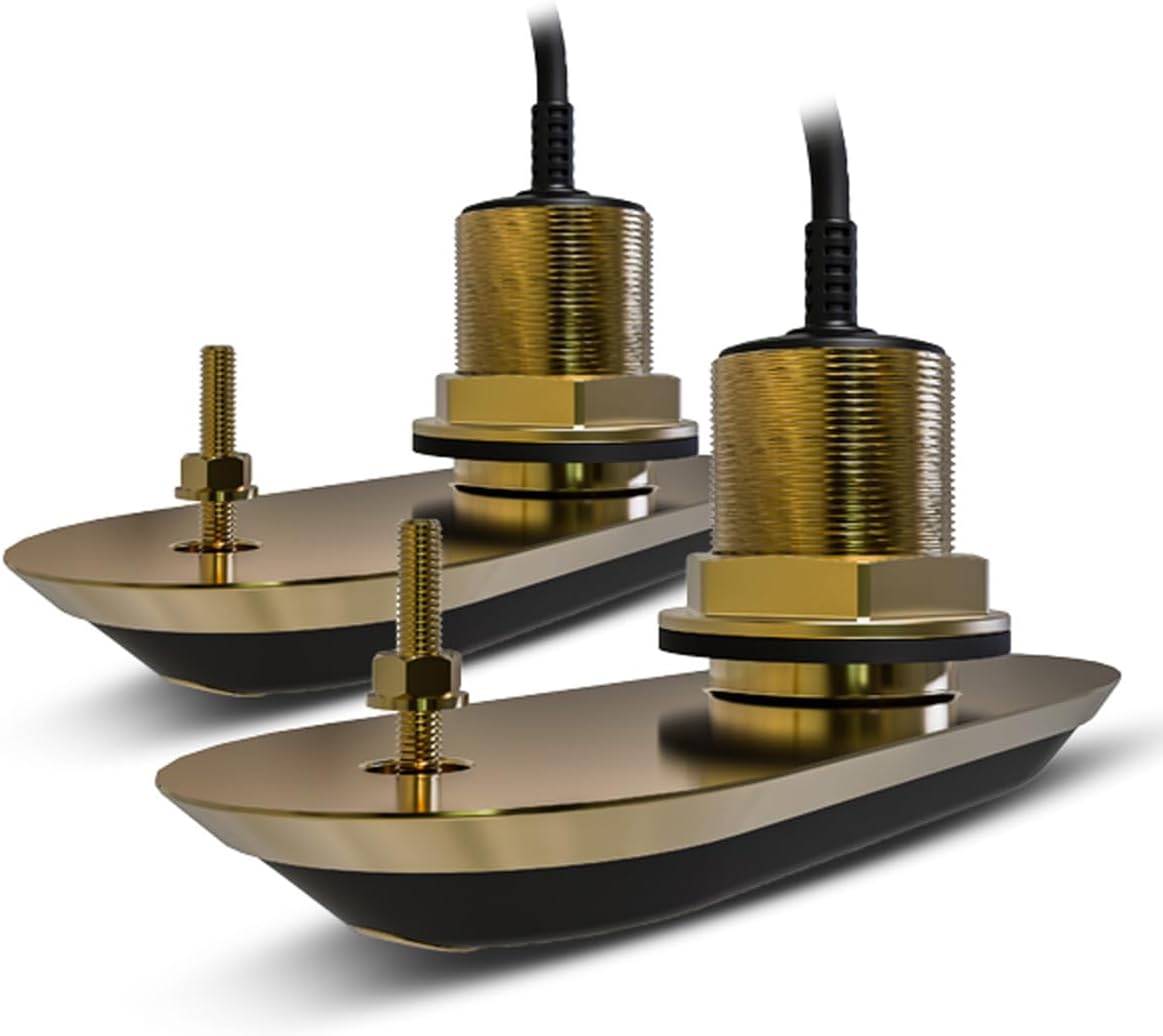

• Configuration: Twin bronze thru-hull transducers (port/starboard pair)
• Transmit Power: 100W CHIRP, 600W traditional (RMS)
• Frequency: 50/200kHz traditional, plus DownVision, SideVision, CHIRP and RealVision 3D
• Maximum Depth: Traditional 900', 3D/DownVision/SideVision 300'
• Beamwidth: 180° total coverage

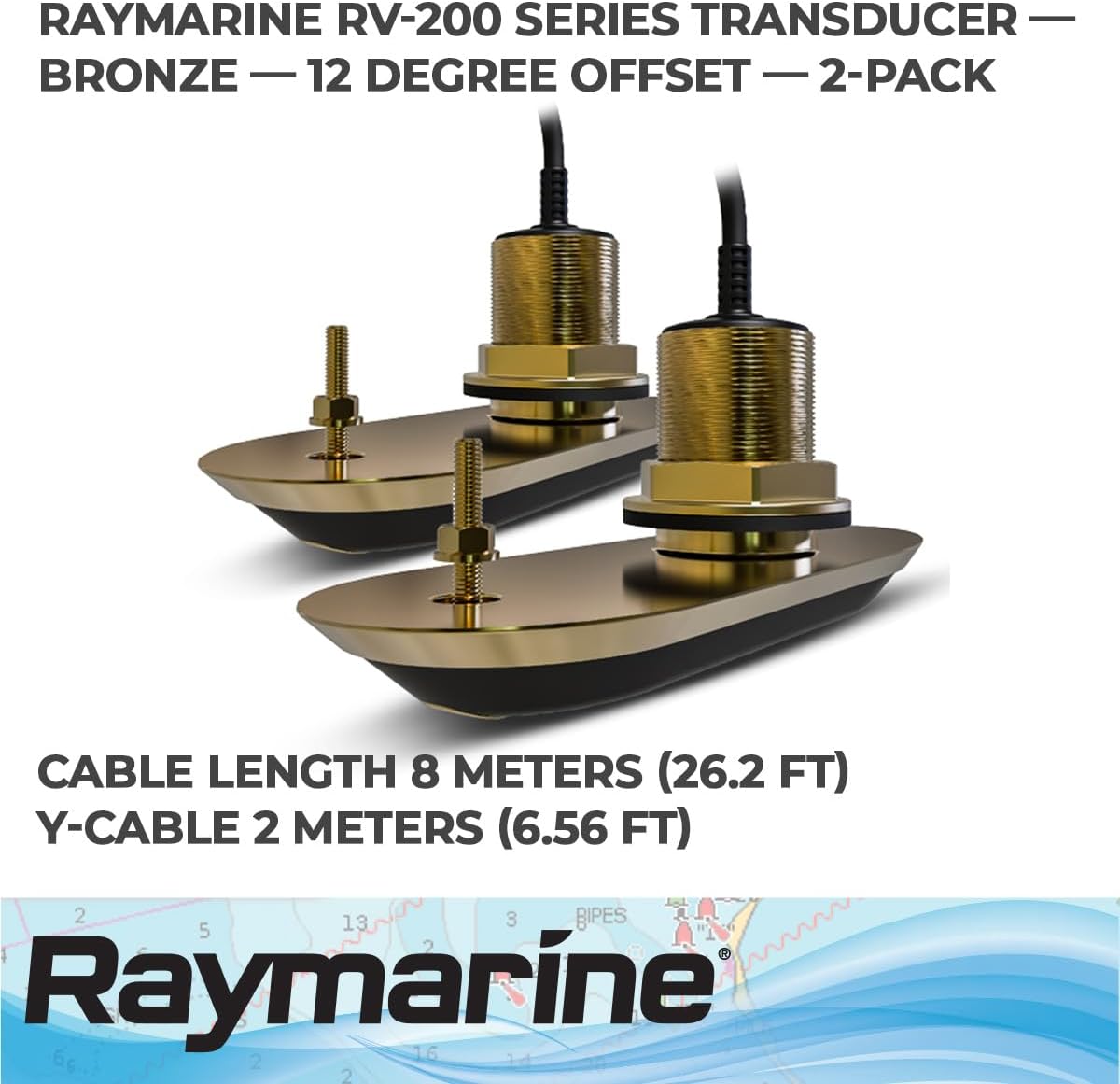

• Cable Length: 2-meter pigtails per transducer, 8-meter extension cable (10 meters/33 feet total)
• Connector: 25-pin
• Material: Rugged cast bronze

Package Includes:

• Two RV-212 bronze thru-hull transducers (one port, one starboard)
• Split transducer Y-cable
• 8-meter transducer extension cable
• Installation instructions

Ideal for inboard or outboard boats, the RV-212 system provides professional-grade sonar performance with simplified installation and exceptional reliability.
