RealVision 3D Transducers combine CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a single transducer housing.

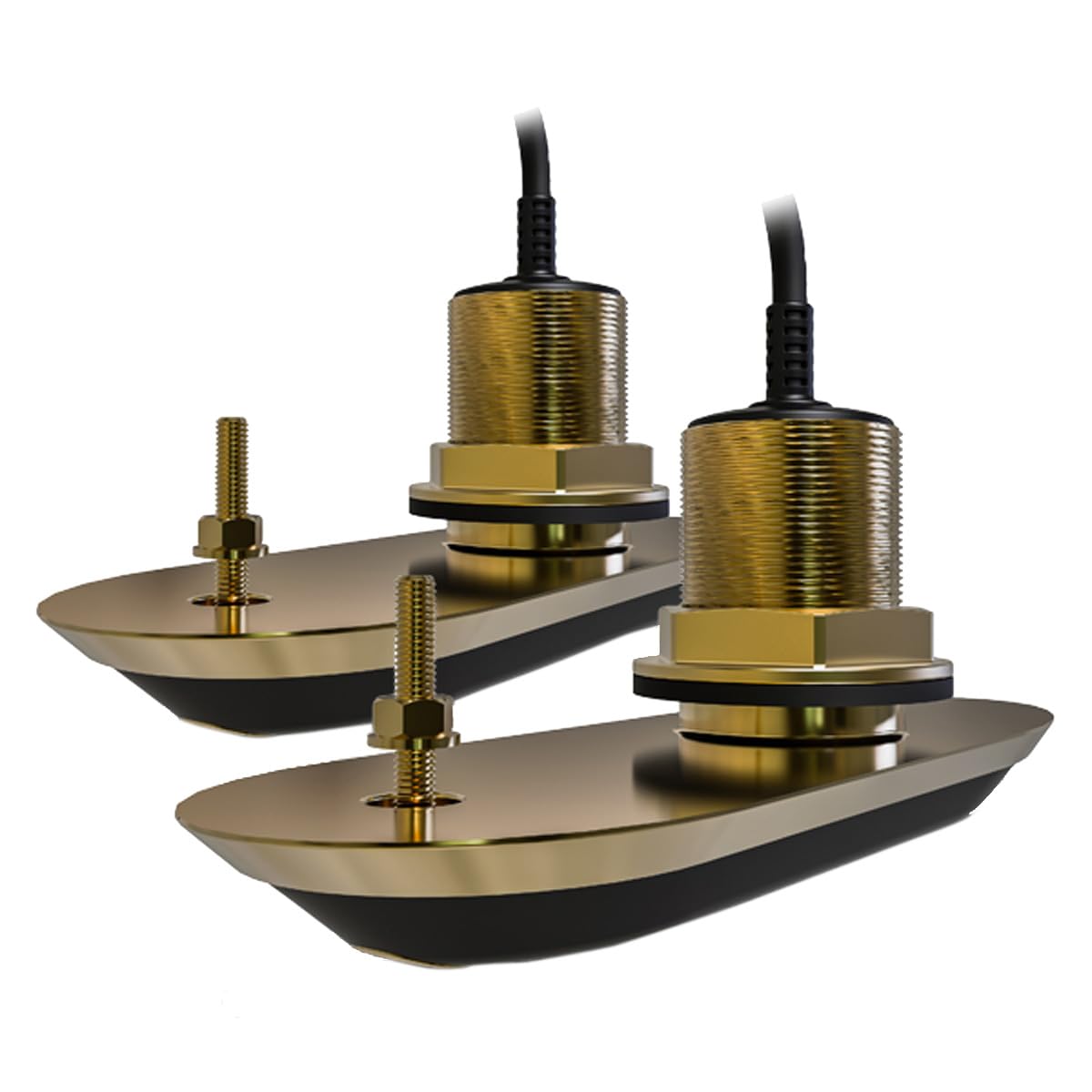

Designed for inboard or outboard boats, the RV-220 Bronze Thru-Hull Transducer System lets you easily identify structures and locate fish with the lifelike clarity of RealVision 3D™ sonar.
Raymarine's RV-220 Bronze Thru-Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.

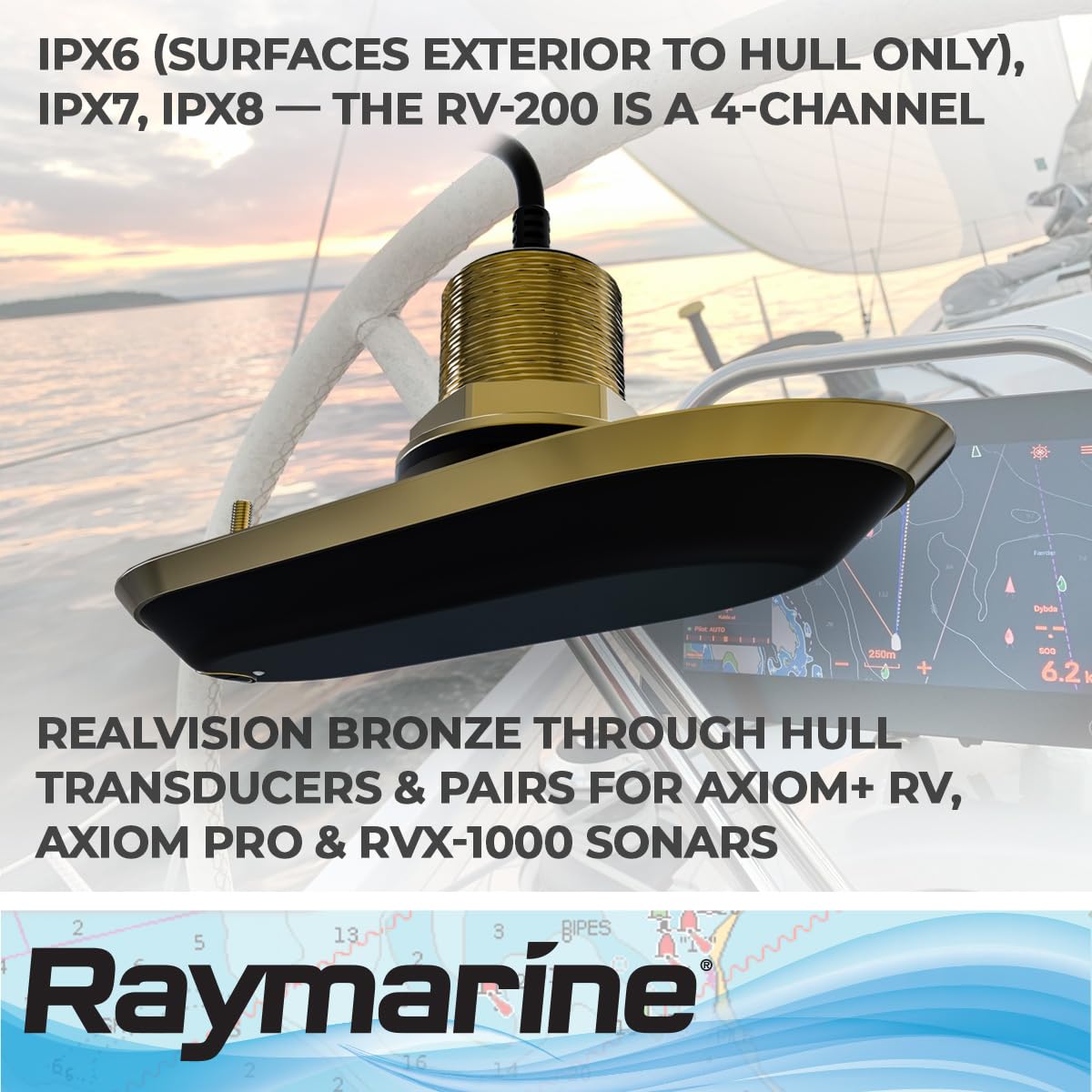

The RV-220 system features rugged cast-bronze thru-hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet).
Key Features
- Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
- Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
- Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
- Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, high frequency CHIRP, and 600W 50/200kHz traditional sonar
- The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion
- You'll enjoy crystal-clear imagery in waves, swells, and while maneuvering
- Built-in fast response water temperature sensor for quick, accurate readings
- Rugged cast-bronze thru-hull bodies suitable for fiberglass or wooden hulls
- One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions
- The low-profile design slips effortlessly through the water without causing drag or cavitation
- Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33').
- The near-flush RV-220 system works great on trailered boats too, and with no fairing block to cut, installation is a breeze
Specifications
- Application: Axiom displays
- Style: Twin thru-hulls
- Cable Length: 6'7" pigtails on each transducer, 26'4"(8m) extension cable
- Connector: 25-Pin Connector
- Monitors: Depth/Temperature
- Material: Bronze
- Transmit Power: 100W (CHIRP); 600W traditional (RMS)
- Frequency: 50/200kHz traditional; DownVision, SideVision, CHIRP and RealVision 3D
- Deadrise Angle: 13° to 20° offset port/starboard
- Max. Depth: Traditional: 900'; 3D: 300'; CHIRP DownVision: 300'; CHIRP SideVision: 300'
- Beamwidths: 180° total
What’s in the Box

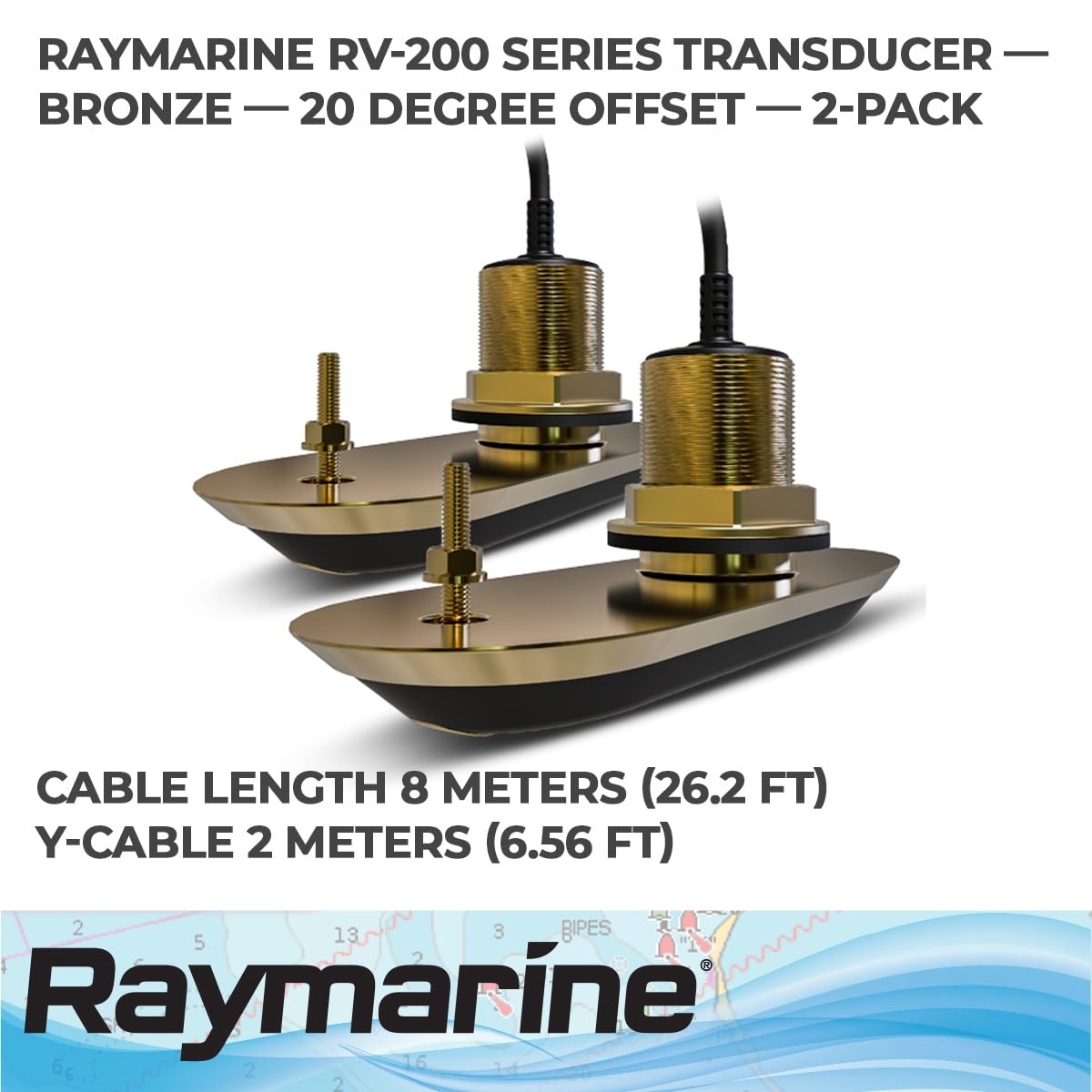

- (2) RV-220 Bronze Thru-Hull Transducers; (1) Port / (1) Starboard
- Split Transducer Y-Cable
- 8 meter Transducer Extension Cable
- Installation instructions
