Blue Sea Systems 7517 P12 Battery Charger Display Panel

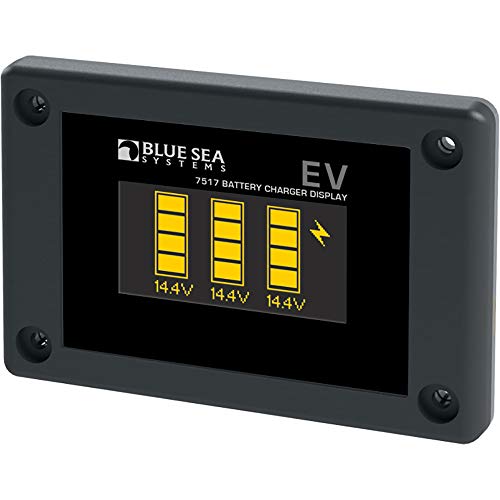

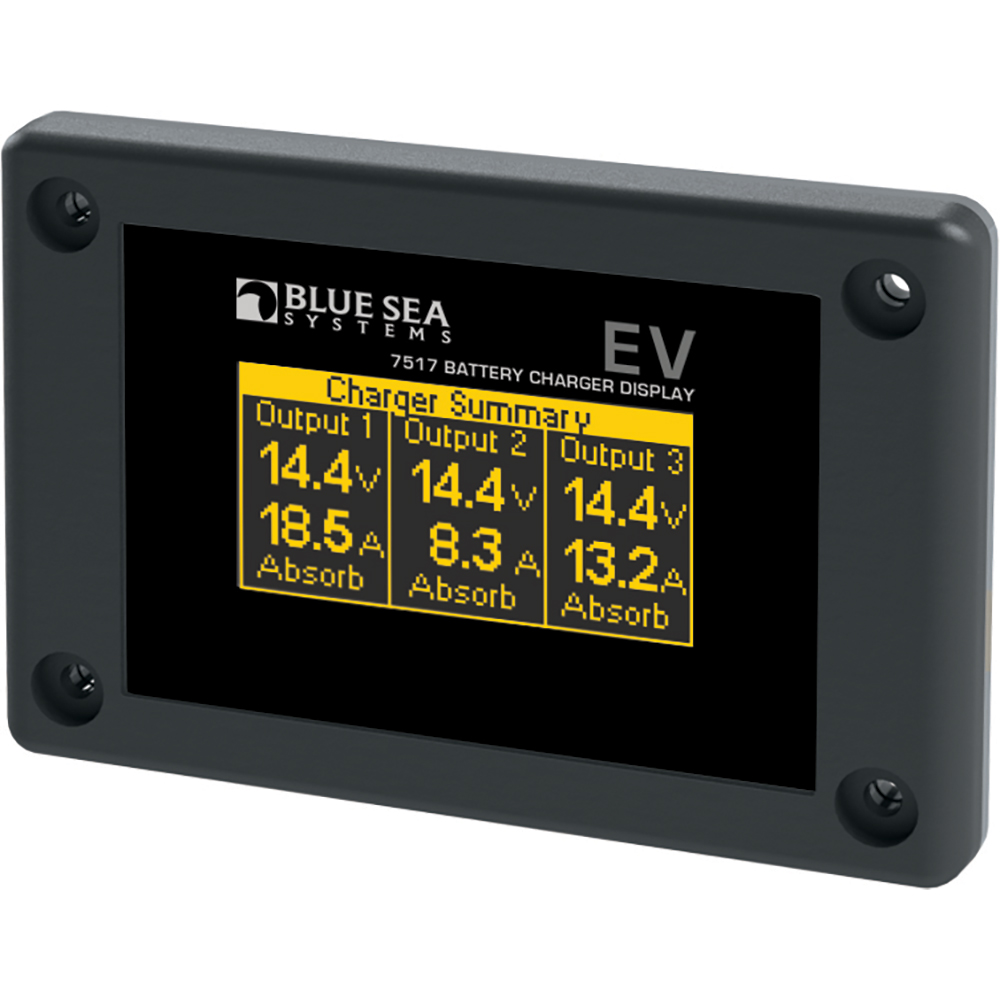

The Blue Sea Systems P12 Battery Charger Display provides intuitive monitoring for your marine or RV electrical system. This versatile display offers two monitoring modes: it can show a graphical voltage representation for 1 to 3 battery banks operating independently, or display the comprehensive summary screen when connected to a P12 Battery Charger, showing voltage, current charging stage, and system faults.

Key Features:

• Drop-in replacement for traditional rectangular battery charger displays
• Automatically detects and displays 1-3 battery banks
• AC charge indication verifies power connection and active charging status
• Plain language fault indication for easy troubleshooting
• Dip switch selectable configuration switches between voltage bar graphs and P12 charger summary screen
• Displays voltage bar graphs even when AC power is disconnected
• Optional standby mode conserves power by shutting off screen after 4 hours of inactivity
• Integrated knock sensor provides automatic wake from standby mode
• Bright, daylight-readable OLED display for excellent visibility in all conditions

This display panel is designed for easy installation and provides clear, at-a-glance monitoring of your battery charging system, making it an essential component for managing onboard power systems.
