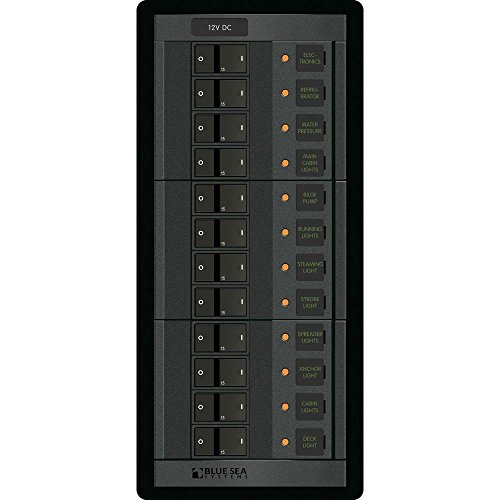

Blue Sea Systems 1223 12-Position DC Circuit Breaker Panel 12V 100A

The Blue Sea Systems 1223 is a 12-position DC circuit breaker panel designed for marine and RV electrical systems. This comprehensive power distribution solution comes pre-installed with twelve 15-amp A-Series flat rocker circuit breakers, providing reliable overcurrent protection for up to 12 branch circuits.

Key Features:

• 12 pre-installed 15-ampere single-pole circuit breakers for immediate installation
• 100-amp maximum capacity per bus bar for robust power distribution
• Expandable system compatible with 4 to 32 branch circuit configurations
• Compatible with optional voltmeters, ammeters, and digital multimeters for system monitoring
• Includes 4205 Square Format Label Set with 30 black square labels for professional circuit identification
• Compact design ideal for space-limited installations

Technical Specifications:

• Nominal Voltage: 12V DC
• Maximum Amperage: 100A per bus (when properly fused and wired)
• Dimensions: 10.75" H × 4.88" W × 3.00" D
• Weight: 4.85 lbs

What's Included:

• Twelve 7403 A-Series flat rocker circuit breakers (15A single pole)
• One 4205 Basic DC Label Kit with 30 black square labels

This panel provides a professional solution for organizing and protecting DC electrical circuits in boats, RVs, and other 12-volt applications. Maximum amperage ratings depend on proper sizing of fuses and wire for your specific application.
