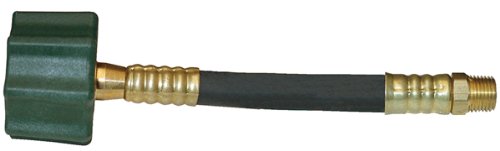

AP MER42615 15" RV Propane Pigtail Hose Type 1 ACME 1/4" MNPT

The AP MER42615 is a professional-grade 15-inch RV propane pigtail hose designed to provide a safe, reliable connection between your RV propane regulator and LP gas cylinder. This flexible thermoplastic hose features a Female QCC Type 1 (ACME) connection on one end and a 1/4-inch Male National Pipe Thread (MNPT) on the other, offering versatile compatibility with standard RV propane systems.

Key Features:

• 15-inch length provides flexible positioning between regulator and tank
• Female QCC Type 1 ACME connector to 1/4" MNPT connection
• Thermally protected with excess flow valve for enhanced safety
• Rated up to 350 PSIG working pressure with 400 lb. pull test rating
• 200,000 BTU capacity for RV applications
• UL and CGA approved flexible thermoplastic construction
• Fully crimped brass ferrules for secure, leak-free connections
• 1/4-inch inside diameter high-pressure hose

Safety Features:

• Excess flow valve helps prevent accidents in the event of downstream breaks or leaks
• Thermal protection activates between 240°F and 300°F to stop gas flow
• Flow-limiting device shuts down flow to maximum 10 SCFH if excessive flow is detected

This pigtail hose is designed for RV, trailer, and mobile propane applications where a secure, code-compliant connection is required. The Type 1 ACME connector features an easy-to-tighten hand wheel that eliminates the need for tools during installation. Constructed with durable materials including thermoplastic hose and brass fittings, this pigtail delivers long-lasting performance in demanding mobile environments.
