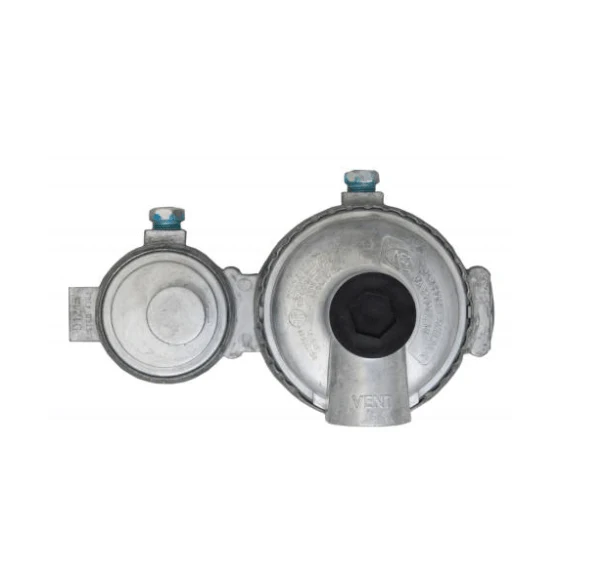

AP MEGR298L Low Capacity Two-Stage Propane Regulator with 90-Degree Vent

The AP MEGR298L is a compact two-stage propane regulator designed for RV, manufactured home, cabin, and outdoor cooking applications with low to moderate BTU demands. This regulator combines both a high pressure first stage and a low pressure second stage into a single compact unit, providing smooth and consistent gas flow to appliances.

Key Features:

• 1/4" FNPT inlet and 3/8" FNPT outlet with 11" W.C. outlet pressure and 175,000 BTU/hr capacity
• Low capacity model (blue bonnet) with 120,000 BTU at 100 PSI inlet
• All zinc body construction with zinc powder coating for durability
• 90-degree vent orientation (9:00 position) for horizontal mounting applications
• High and low 1/8" NPT pressure tap ports for system monitoring
• Integral second stage drip lip vent design
• POL connector included for standard propane cylinder connection

Specifically intended for applications with low BTU demands requiring two-stage regulation, ideal for single appliance or low BTU multiple appliance setups. Meets UL, RVIA and NFPA requirements for safe propane system operation.
