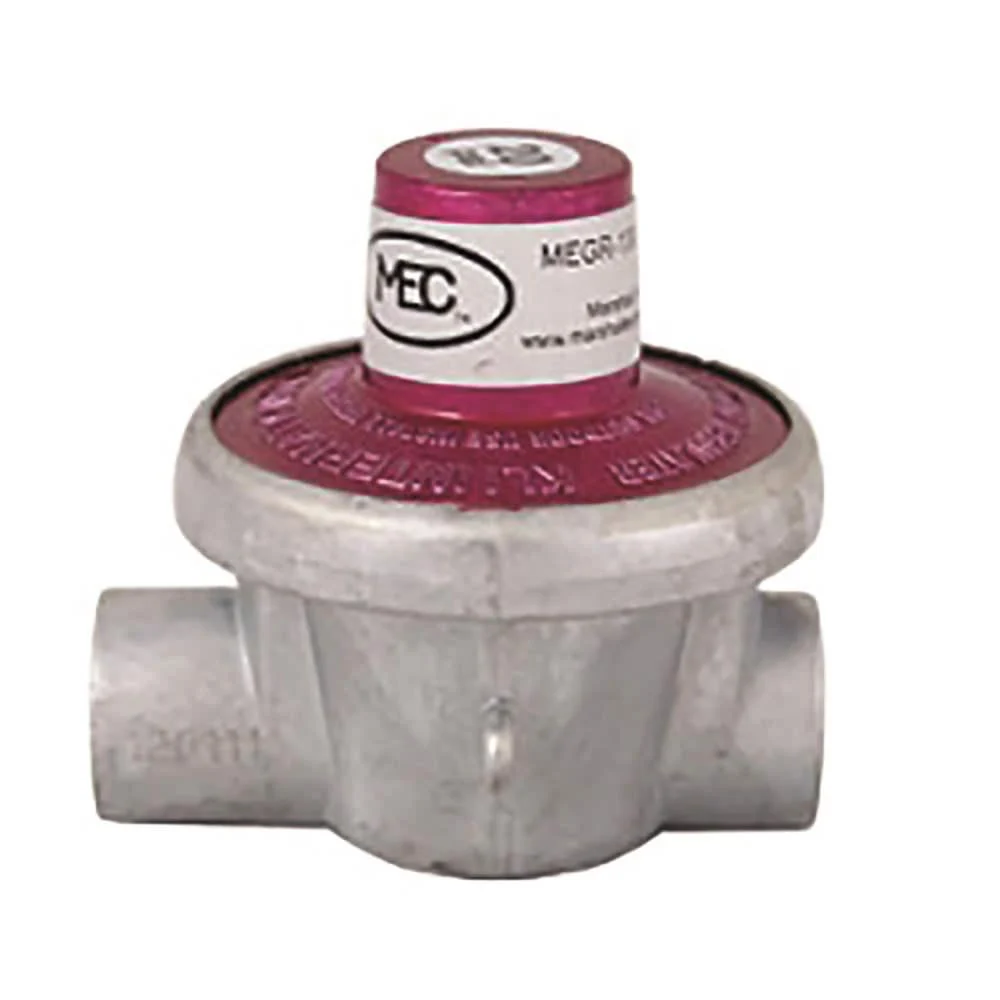

AP MEGR13030 Excela-Flo High Pressure LP Gas Regulator 30 PSI Single Stage

The AP MEGR-130-30 Excela-Flo is a fixed high pressure single stage regulator designed to provide an economical solution for pounds to pounds service applications. This fixed 30 PSI single-stage regulator is engineered for high-pressure RV and split-cylinder propane applications.

Key Features:

• 1/4 inch female NPT inlet and 1/4 inch female NPT outlet connections
• 30 PSI outlet pressure, single stage design
• 1,200,000 BTU capacity for high-demand applications
• Maximum inlet pressure: 250 PSIG (17.2 bar)
• Red anodized exterior finish for corrosion resistance
• Die cast zinc body and bonnet construction
• Fabric reinforced Buna-N diaphragm with 0.0625 inch orifice diameter
• Horizontal mount installation type
• UL Listed / UL 144 certified

This versatile regulator can be used to regulate air as well as LP gas. Regulators must be installed in compliance with federal, state or local codes or laws in accordance with NFPA 58. Replaces Marshall Excelsior MEGR-630.
