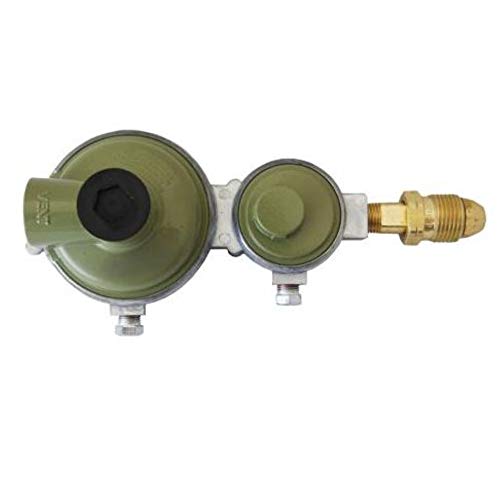

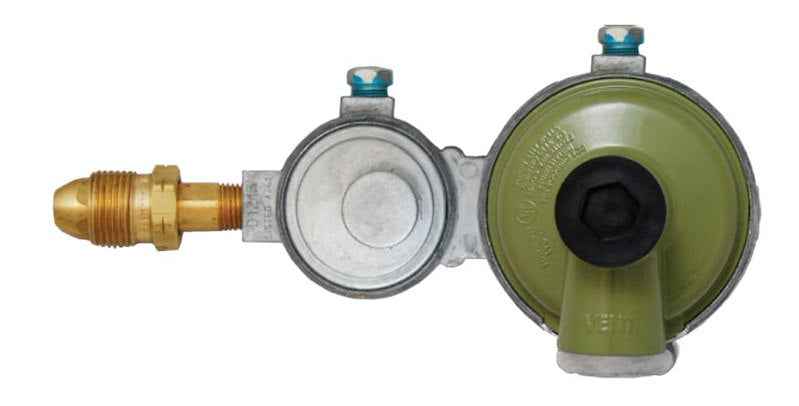

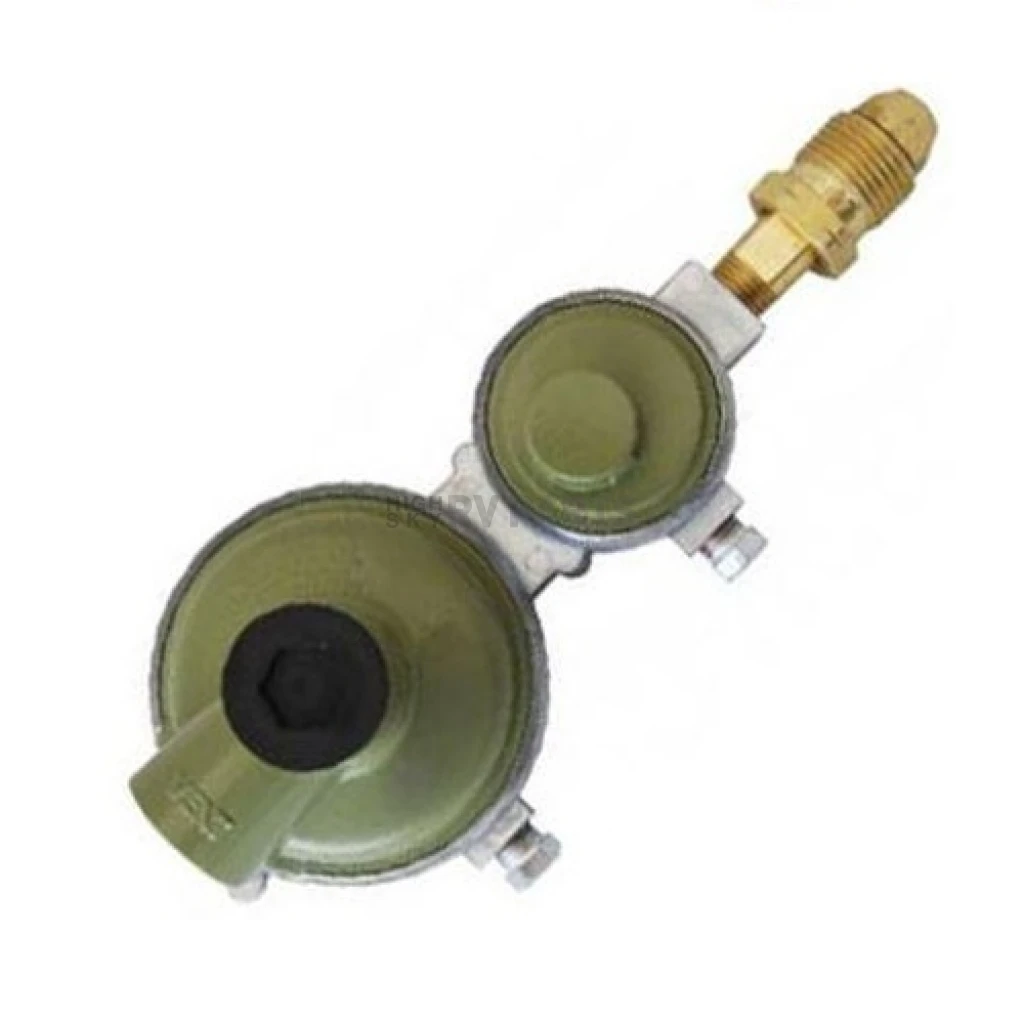

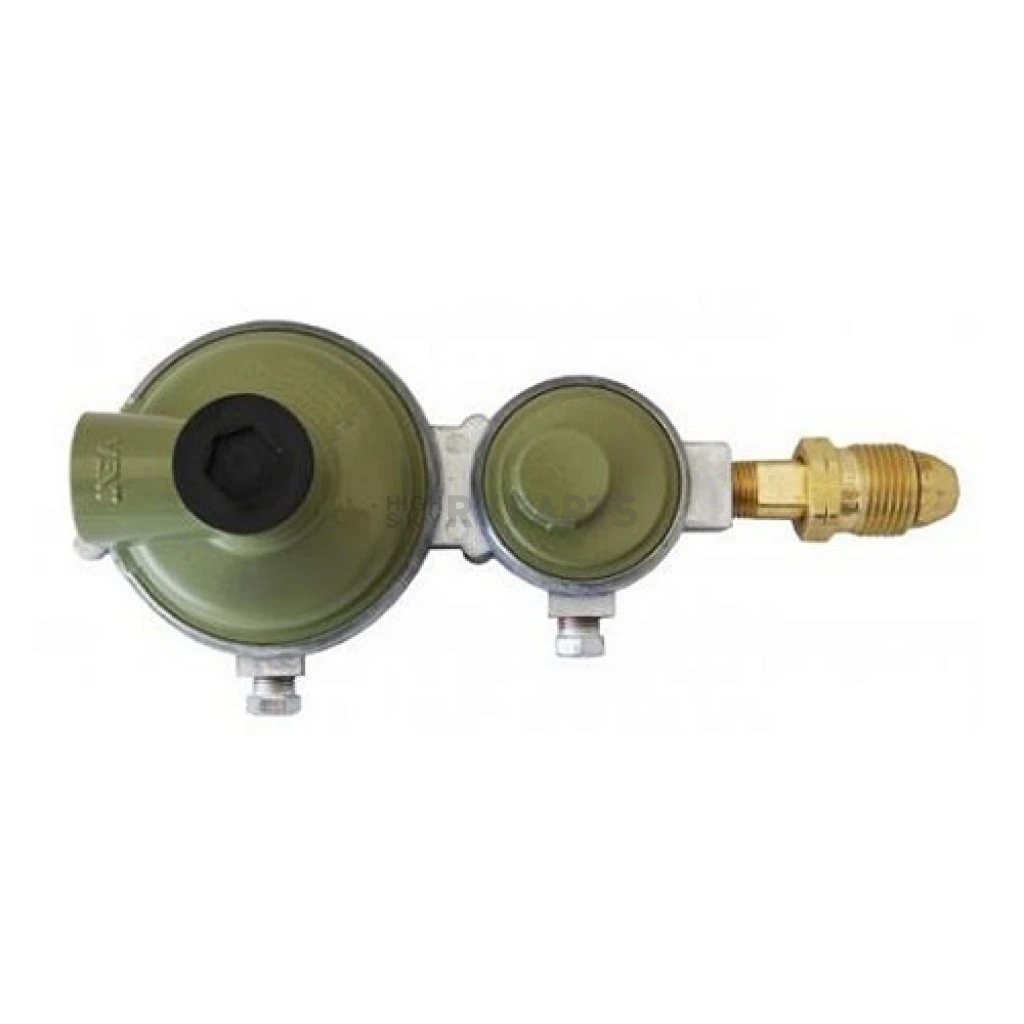

AP MEGR295H High Capacity Compact 2-Stage LP Gas Regulator 225,000 BTU

The AP MEGR295H is a high-capacity compact two-stage LP gas regulator designed for RV and residential propane systems requiring reliable, stable low-pressure output. Manufactured by Marshall Excelsior, this regulator delivers exceptional performance for high-demand applications with a 225,000 BTU capacity.

Key Features:

• High-capacity 225,000 BTU output for demanding propane systems
• Two-stage regulation ensures stable 11 inch water column outlet pressure
• POL (1/4 inch Prest-O-Lite) inlet connection x 3/8 inch FNPT outlet
• All-zinc die-cast body construction with zinc powder-coated finish for corrosion resistance
• 90-degree vent configuration for flexible installation
• High and low 1/8 inch NPT pressure tap ports for system testing and maintenance
• Internal relief with spring-loaded diaphragm for reliable performance
• Integral second stage drip lip vent
• Horizontal mount design
• RV industry approved - meets UL, RVIA, and NFPA requirements

This compact high-capacity regulator is ideally suited for high-demand RV propane systems, cabins, seasonal homes, gas fireplaces, water heaters, and other moderate to low-demand domestic installations. The durable zinc construction ensures long-term outdoor performance and reliability. Made in the USA with a 5-year limited manufacturer warranty.
