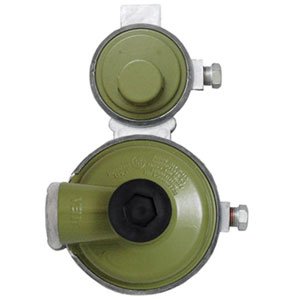

AP MEGR298H Excela-Flo Two Stage High Capacity Propane Regulator 225,000 BTU

The AP MEGR298H Excela-Flo is a high-capacity integral two-stage propane regulator designed for RV and portable LP gas applications requiring reliable, consistent low-pressure output. This regulator combines both a high-pressure first stage and a low-pressure second stage into a single compact unit, reducing cylinder pressure to approximately 10-15 PSI in the first stage, then completing the process by delivering a stable 11 inches water column outlet pressure in the second stage.

Key Features:

• High-capacity 225,000 BTU per hour rating for demanding propane systems
• Two-stage regulation ensures smooth, consistent gas flow to all appliances
• Durable die-cast zinc body with zinc powder-coated finish for corrosion resistance
• 1/4 inch FNPT inlet connection with POL connector included
• 3/8 inch FNPT outlet connection
• 90-degree vent configuration with integral second-stage drip lip vent
• High and low 1/8 inch NPT pressure tap ports for system diagnostics and testing
• Horizontal mount installation design
• Maximum inlet pressure: 250 PSI
• Outlet pressure: 11 inches water column (0.5 PSI)

Approved for use in RV applications and nearly all portable propane systems requiring low-pressure regulation. The all-zinc body construction provides long-term durability in outdoor environments, while the two-stage design delivers superior pressure stability compared to single-stage regulators. RV approved and suitable for heating, cooking, and other low-pressure LP gas appliances. Hose not included.
