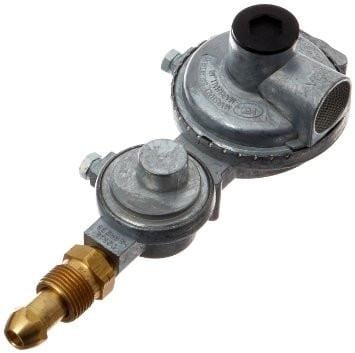

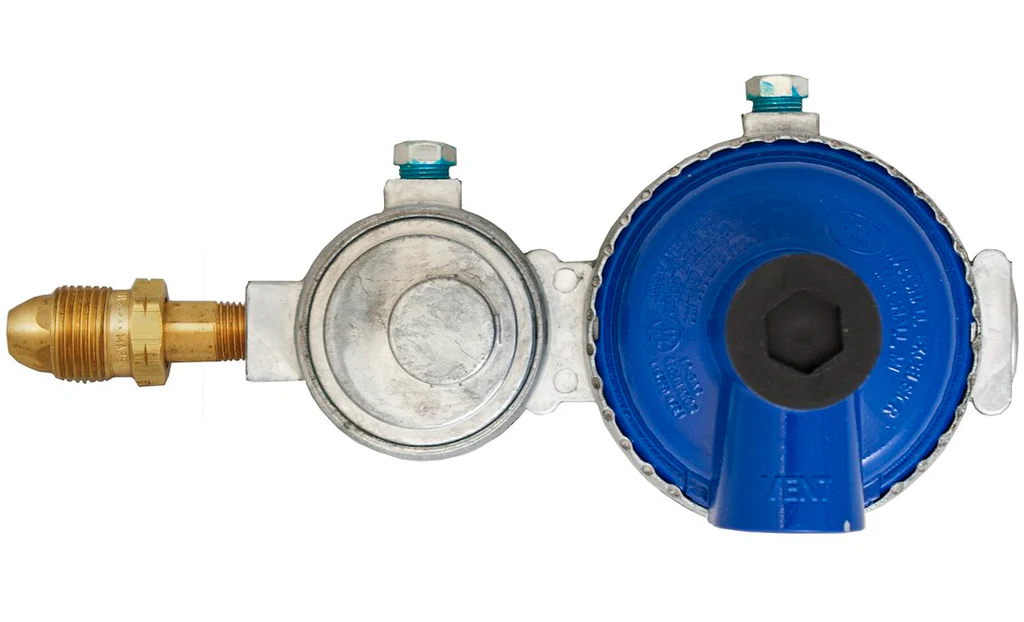

AP MEGR295LP Two-Stage LP Gas Regulator with 90-Degree Vent

The AP MEGR295LP is a compact integral two-stage propane regulator designed for underbody-mounted RV propane tanks and portable LP gas applications. This regulator features all zinc body construction, high and low 1/8" NPT pressure tap ports, an integral drip lip vent and a 90-degree vent location.

Key Features:

• Maximum inlet pressure of 250 PSI with POL (Prest-O-Lite) inlet connection
• 1/4" FNPT inlet to 3/8" FNPT outlet connection
• 90-degree (9:00 position) vent orientation for flexible installation
• 225,000 BTU capacity suitable for low-pressure systems
• Die-cast zinc construction with fabric reinforced molded diaphragm
• Internal relief, spring-loaded design with 3-1/2" on-center mounting holes
• Meets RVIA, UL 144, and NFPA test requirements

LP gas regulators reduce propane vapor pressure from tank pressure to desired appliance pressure. According to national code, a two-stage regulator must be used on RVs, as two-stage regulation greatly reduces the possibility of freeze-ups. The second stage regulator receives relatively uniform pressure from the first stage, helping maintain appliance pressure at a nearly constant 11" W.C.

Approved for use in portable applications and outdoor cooking appliances utilizing low pressure. The compact design allows for easy installation in tight spaces while the durable zinc construction provides long-lasting reliability in demanding RV and outdoor environments.
