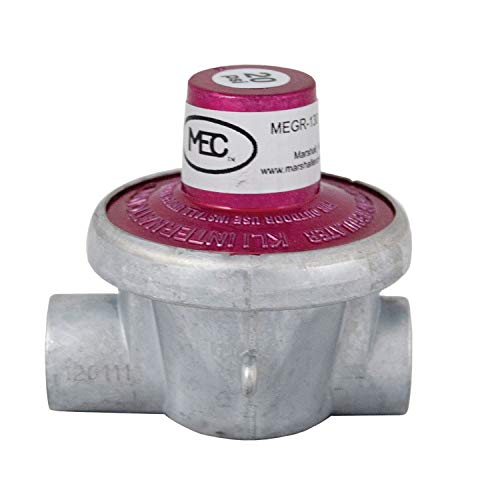

AP MEGR13020 Excela-Flo High Pressure LP Gas Regulator 20 PSI

The AP MEGR13020 Excela-Flo Economy High Pressure Regulator is a single-stage fixed regulator designed to provide an economical solution for pounds-to-pounds service applications in RV, marine, and industrial settings. This versatile regulator can be used to regulate both LP gas and compressed air, making it ideal for a wide range of propane system applications.

Key Features:

• Fixed 20 PSI outlet pressure for consistent performance
• Maximum inlet pressure: 250 PSIG
• 1/4" FNPT inlet and outlet connections
• 1,200,000 BTU/hour capacity at 40 PSI
• Die-cast zinc body and bonnet construction
• Fabric-reinforced Buna-N diaphragm for leak-free performance
• Red anodized exterior finish
• 0.0625" orifice diameter
• UL Listed to UL 144 standards
• RV approved for recreational vehicle applications
• Horizontal mount installation

This compact regulator features a precisely machined crimped design that creates a positive seal for reliable, leak-free operation. Marshall Excelsior's proven Excela-Flo technology ensures consistent high-pressure regulation for your propane system. The regulator must be installed in compliance with federal, state, or local codes and in accordance with NFPA 58.
