AP MER42520P 20-Inch High Pressure LP Propane Pigtail Hose

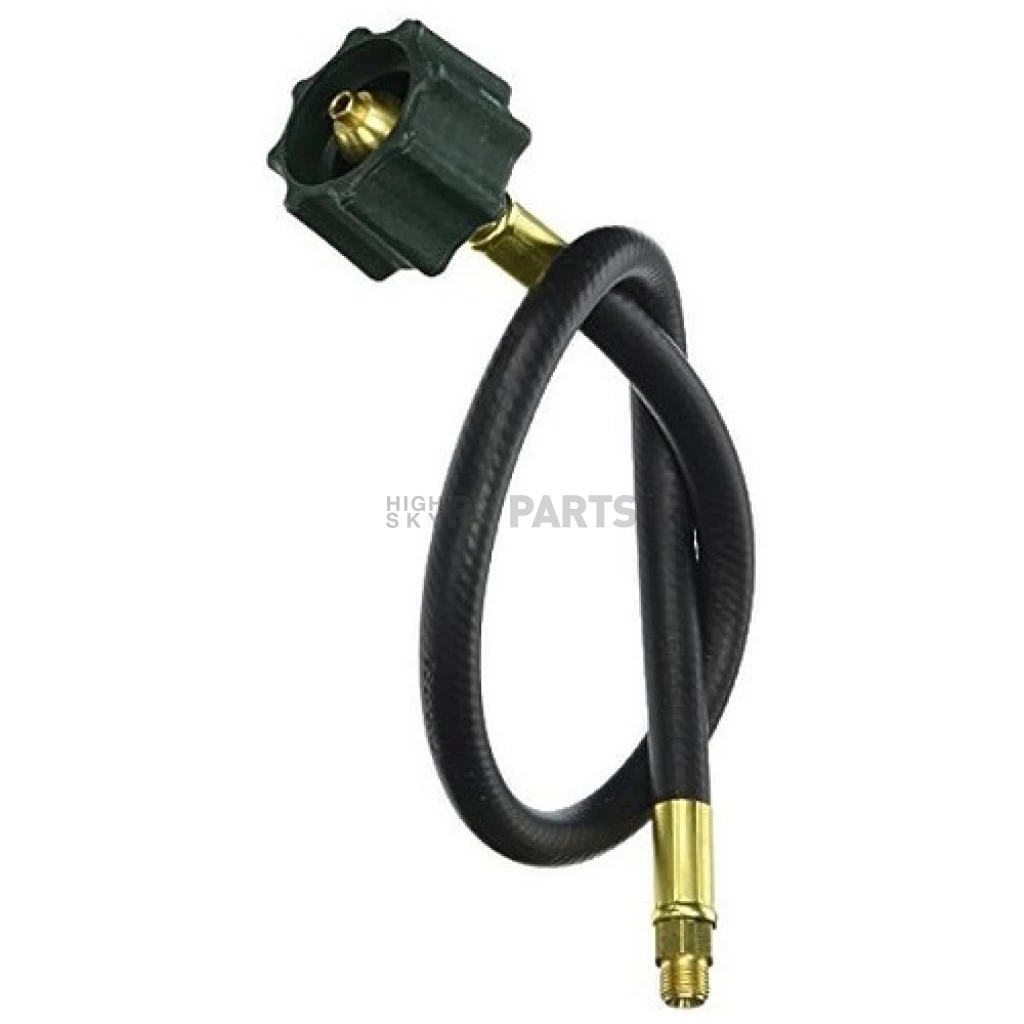

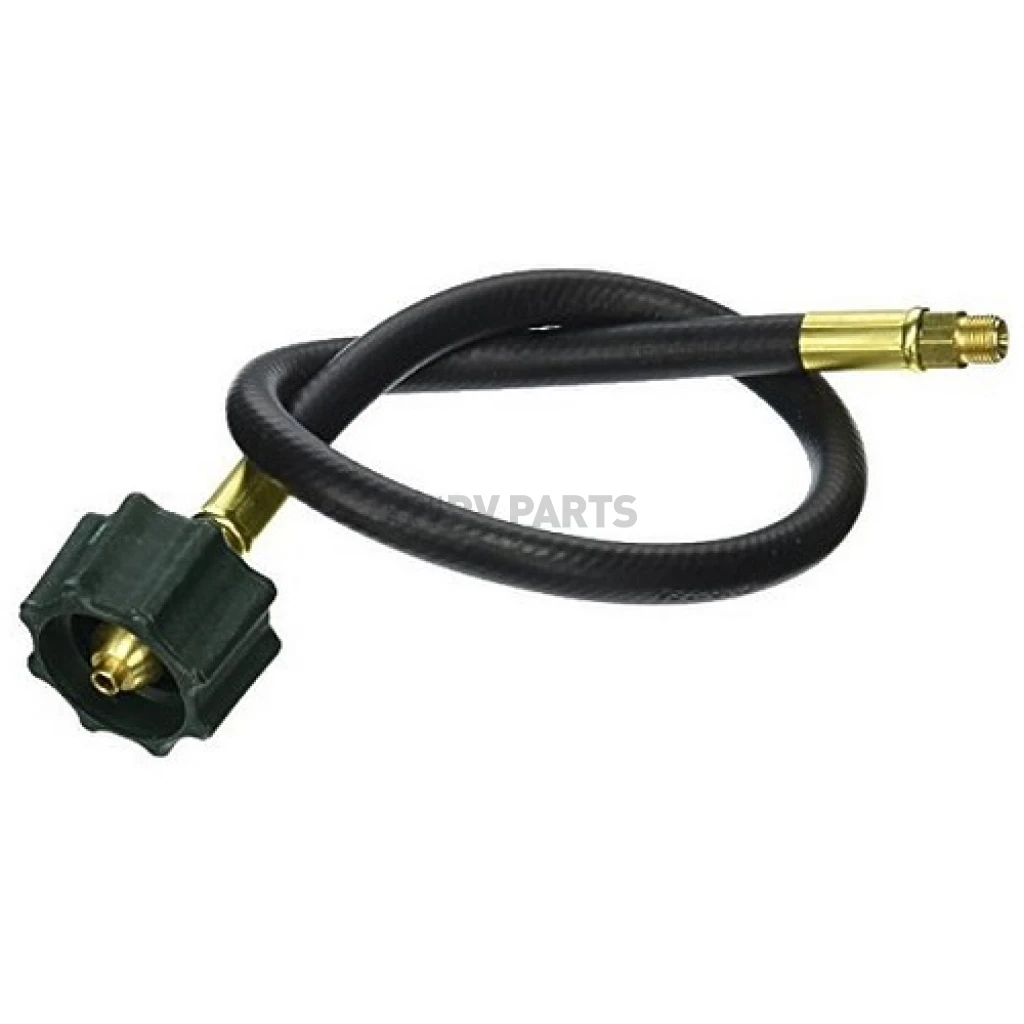

The AP MER42520P is a 20-inch high pressure pigtail hose with a 1/4-inch inside diameter, designed for 200,000 BTU capacity applications. This flexible propane hose connects LP cylinders to RV appliances and features a female QCC (Quick Check Connector) Type 1 connection on one end and a 1/4-inch male inverted flare on the other.

Key Features:

• Flexible thermoplastic UL and CGA approved hose rated up to 350 PSI working pressure with a 400-pound pull test rating
• Designed with excess flow protection for enhanced safety
• Includes thermal protection to prevent gas flow during excessive heat conditions
• Features fully crimped brass ferrules on both ends
• RV use approved
• Comes in retail clamshell packaging

This high-quality propane pigtail hose is part of the Marshall Excelsior MER425 series and provides a reliable, safe connection for RV and recreational vehicle LP gas systems. The green-handled QCC Type 1 connector ensures proper, leak-free attachment to standard propane cylinders.
