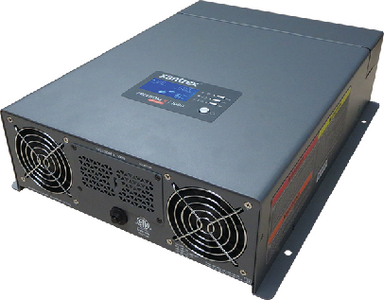

The Freedom X inverter provides up to 2000 watts of continuous utility grade, sine wave power derived from your boat, off-the-grid cabin or RV battery bank.
The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including a fridge or microwave. The quick connect terminals at AC inputs and outputs make installation a breeze.
Pure sine wave power: With pure sine wave AC output, it powers loads such as microwave ovens, TVs, DVD/Blu-ray players, and power tools. In addition, the Freedom X’s high-surge capability lets you handle many hard-to-start loads, including full size residential refrigerators.
Built-in transfer switch: The built-in transfer switch automatically transfers between inverter power and shore power from recreational facilities such as boat docks or campsites to ensure power is always available.
Key Features
- Extended surge rating: Surges to two times the continuous power rating for two seconds for motor loads
- True sine wave AC power: For operation of sensitive and motor loads
- Ignition control: Turns inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
- Wide 10-18 VDC input range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
- Built-in 30A AC transfer relay: Senses when outside AC power is present and transfers the load from the inverter to the source of incoming power (shore or generator); The unit also automatically switches from invert mode to charge mode

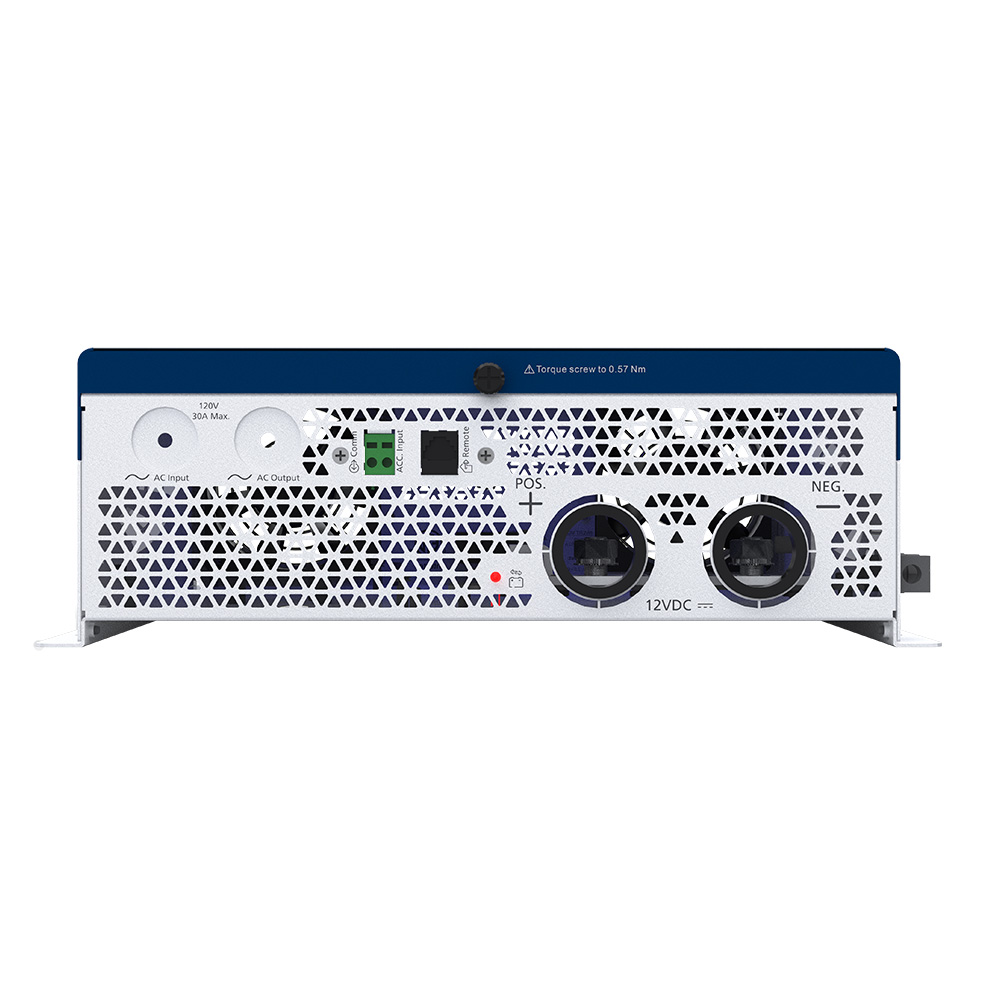

- Quick installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast and easy wiring
- Single receptacle: Hardwire or plug directly into the optional 20A GFCI receptacle

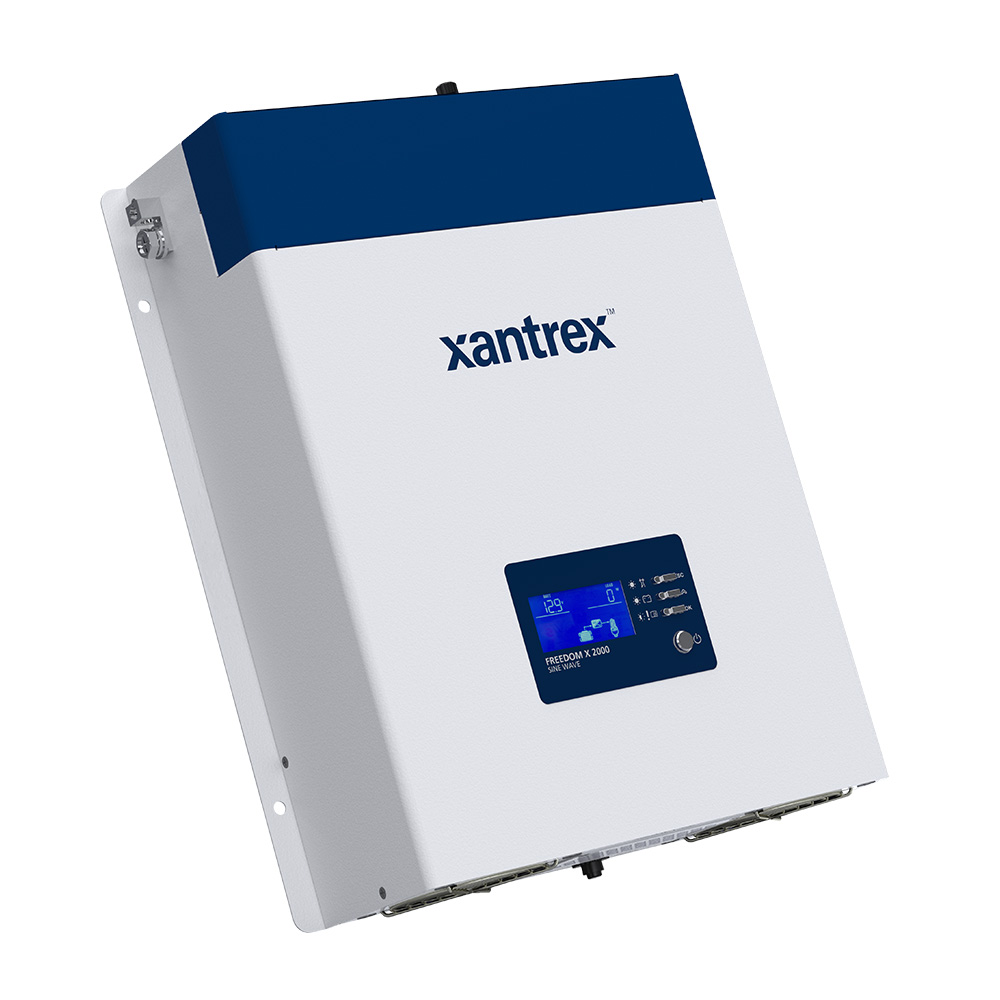

- Display panel: Shows status information on the screen
- Compatible with lithium-ion Battery Management Systems
- Compatible with solar installations
- All models meet UL458 with marine supplement
What's in the Box
- Freedom X inverter
- Owner’s Guide and extra safety labels
- pre-installed ground lug (not shown)
- set of plastic bushings for large DC cables
