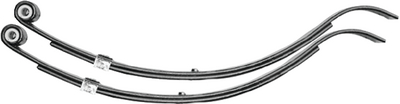

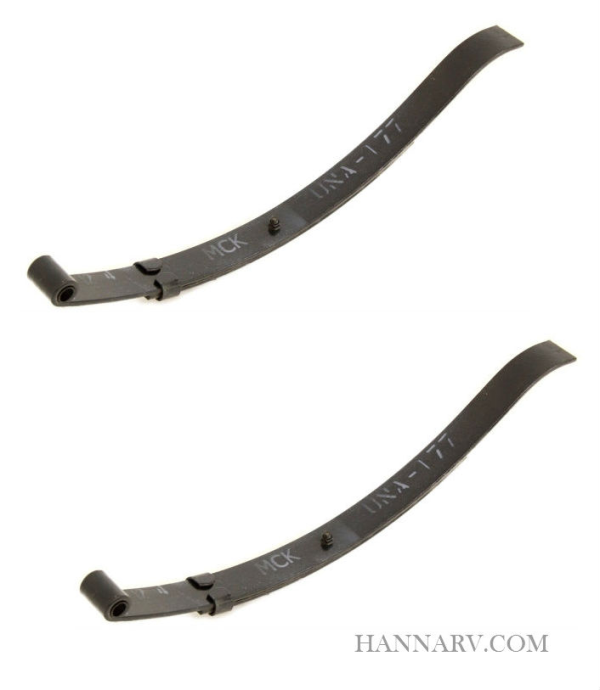

Dexter Marine Products 81194 2-Leaf Slipper Spring 500 lb Capacity 24 Inch

The Dexter Marine Products 81194 is a 2-leaf slipper/radius end trailer leaf spring designed for boat trailers and marine applications with 1,000 lb axles. This replacement spring provides 500 lb capacity per spring, making it ideal for upgrading or replacing worn suspension components on smaller marine trailers.

Key Specifications:

• 500 lb capacity per spring (1,000 lb axle capacity when used as a pair)
• 2-leaf spring construction for reliable performance
• 1-3/4 inch spring width
• 24-1/2 inch free length (measured from center of eye to radius end)
• 9/16 inch inner diameter eye with nylon bushing included
• 4 inch free arch height
• Heavy-duty spring steel construction with black painted finish

Design Features:

• Slipper/radius end design - one end features an eye for mounting, opposite end has a straight radius edge that slips into hangers or equalizers
• Corrosion-resistant black finish ideal for marine environments
• Includes factory-installed nylon bushing for smooth operation and reduced friction
• Compatible with standard trailer suspension hardware and hangers

Leaf springs are critical suspension components that flex to absorb shock while maintaining trailer stability and ensuring a smooth ride. The slipper spring design allows for versatile mounting configurations in single-axle, tandem-axle, or triple-axle trailer setups. For optimal axle alignment and suspension performance, Dexter recommends replacing leaf springs in pairs.
