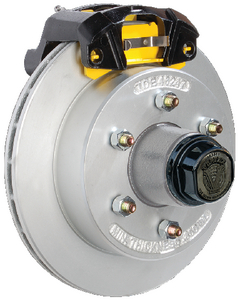

Dexter Marine Products 82062 12" Vented Cap Style Disc Brake Kit with Vortex Hub

The Dexter Marine Products 82062 is a complete 12-inch vented cap style disc brake kit designed for marine trailer applications. This comprehensive kit provides superior stopping power and replaces 12-inch drum brakes on trailer axles rated from 5,200 to 6,000 pounds.

What's Included:

• GalvX finish vented slip-on rotor for enhanced corrosion resistance
• GalvX mounting brackets with all necessary hardware
• Aluminum caliper assembly with stainless steel slider pins
• GalvX Vortex Hub with pre-greased lubrication system
• Complete installation instructions

Key Features:

• 12-inch rotor diameter replaces 12-inch drum brakes
• 6-lug configuration with 5.5-inch bolt circle (fits 15-inch and larger wheels)
• Mounts to 5-hole axle brake flange
• Vortex hub features no-touch pre-greased system with Extra Heavy Duty Lucas grease
• Maintenance-free lubrication for up to 100,000 miles or 6 years
• External zerk fitting allows for easy grease flushing and replacement
• E-Coat finish protects aluminum caliper from salt crystallization
• Bearing size: 1-3/4 inch (25580) inner x 1-1/4 inch (15123) outer
• Axle rating: 6,000 pounds total (3,000 pounds per assembly)

Performance Advantages:

• All-aluminum caliper sheds heat five times faster than cast iron
• Stainless steel slider pins with 7/16-inch hex heads for quick removal
• Oil-impregnated bronze bushings provide smooth, long-lasting operation
• Oversized rubber boot is 50 percent thicker for positive piston withdrawal
• Compact design allows for short axle overhangs and direct brake line routing

This is a universal left or right side assembly. Two kits are required per axle for a complete installation. Not designed for use with electric-over-hydraulic brake actuators producing more than 1,200 PSI.
