Dexter Marine Products 86540 Leaf Spring Suspension Kit 2200 lb 1.75" Round Axle

The Dexter Marine Products 86540 is a complete leaf spring suspension kit designed for marine and utility trailers with 2,200 lb capacity 1-3/4" round tube axles. This comprehensive kit provides all the necessary components to install or rebuild a single axle suspension system on your trailer.

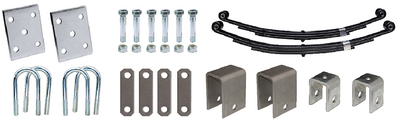

Complete Kit Includes:

• (2) Double eye leaf springs with combined 2,200 lb capacity - 25-1/4" length with 3 leaves, 1-3/4" wide
• (2) Weld-on front spring hangers - 3-1/4" inside top of hanger to hole center
• (2) Weld-on rear spring hangers - 7/8" inside top of hanger to hole center
• (4) Shackle links - 4-1/4" length, 3-1/4" hole center spacing, fits 9/16" bolts
• (6) Zinc-plated shackle bolts - 9/16" x 3"
• (1) Axle tie plate kit with u-bolts - 1/2" x 1-3/4" x 4-3/8"

This kit is engineered to Dexter's exacting standards and provides reliable performance for boat trailers, utility trailers, and other light-duty trailer applications. The weld-on hangers require welding to the trailer frame for proper installation. Ideal for new trailer builds or complete suspension replacements on existing trailers equipped with 1-3/4" diameter round axle tubes.
