RAM Mounts RAM-D-111 Large Marine Electronics Mount D Size 2.25" Ball

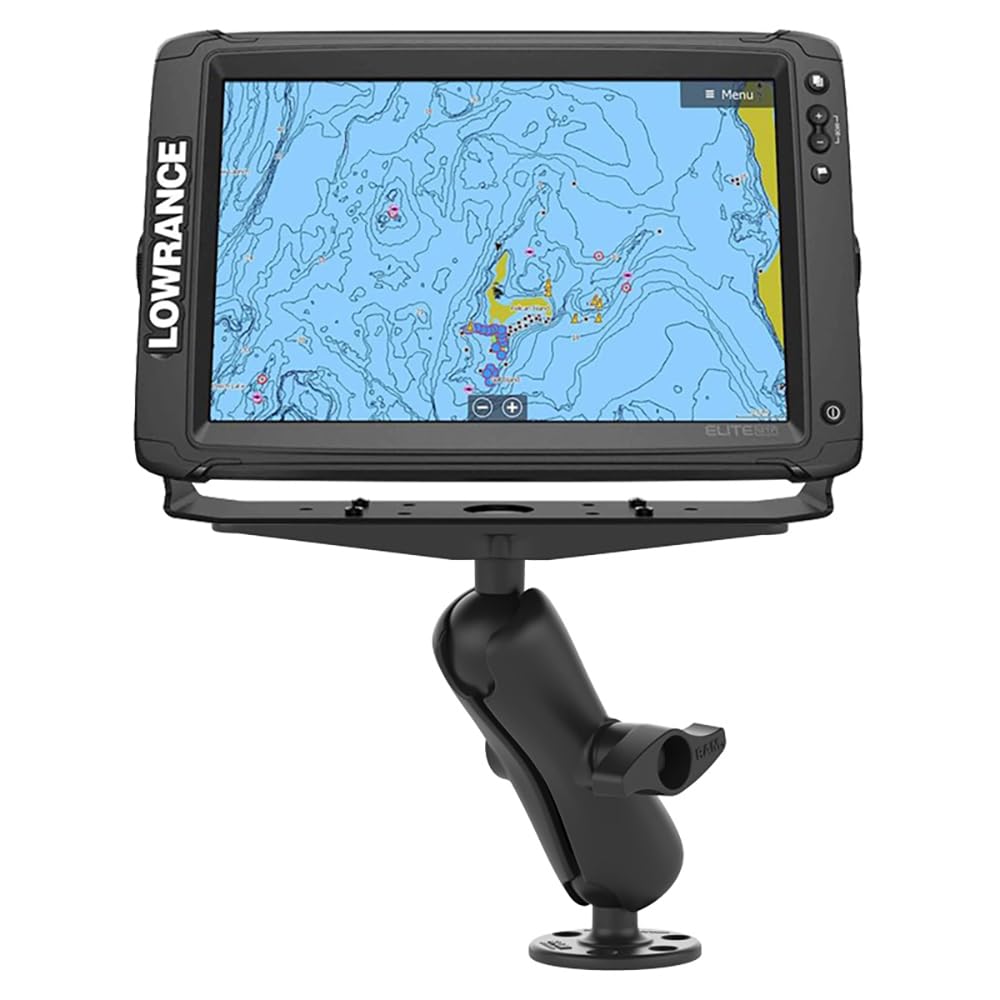

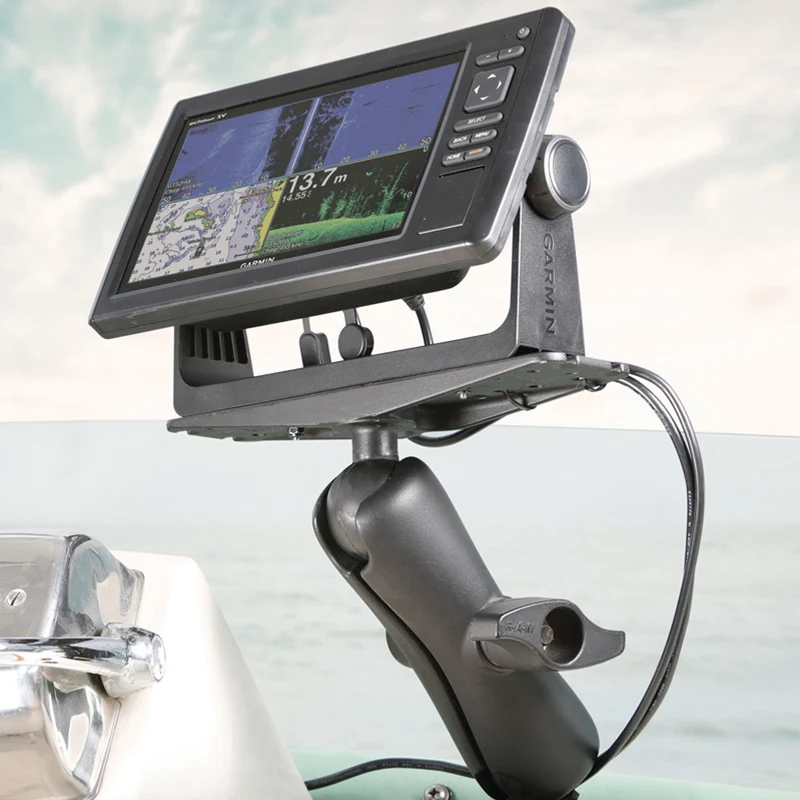

The Ram Mounts RAM-D-111 is a complete, drill-down mounting solution designed for large marine electronic devices including fish finders, chartplotters, marine GPS units, CB radios, and ham radios. Built from powder-coated, marine-grade aluminum, this mount is engineered to deliver reliable performance in demanding on-water environments.

Key Features:

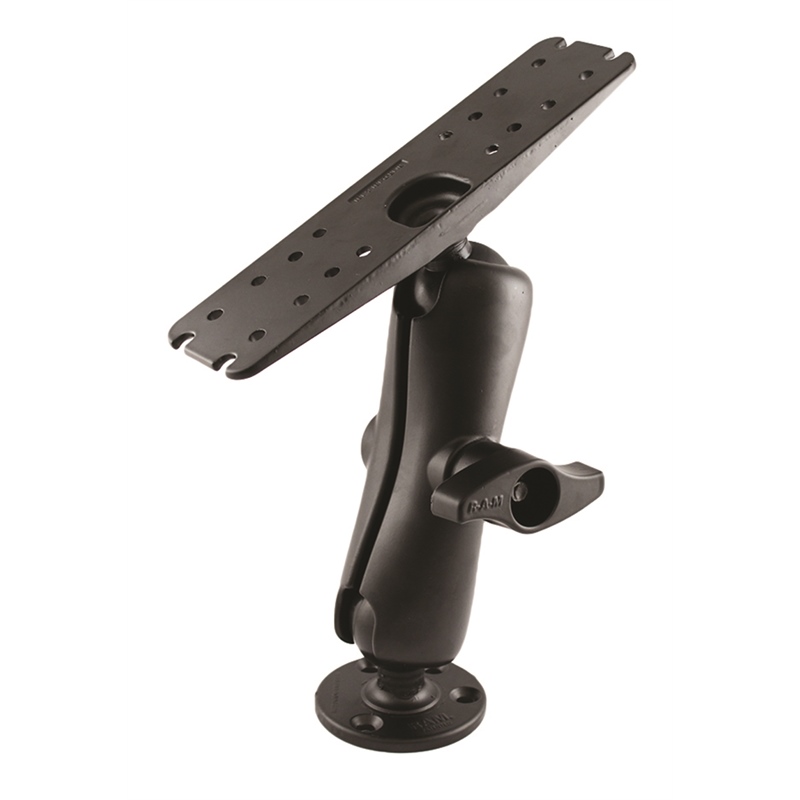

• Includes a 3.68" diameter round base, double socket arm, and 11" x 3" rectangular adapter plate
• Features RAM's 2.25" D-size rubber ball and socket system on both the round base and rectangular plate
• Round base is pre-drilled with multiple hole patterns, including two holes at 180° and three holes at 120°, plus the universal AMPS hole pattern
• Rectangular plate includes a variety of pre-drilled hole combinations compatible with marine GPS units, fish finders, chartplotters, CB radios, ham radios, and gimbal brackets
• Double ball and socket design provides near-infinite adjustability — dial in the perfect viewing or operating angle with a single knob
• Modular design is fully compatible with the broad range of interchangeable RAM Mounts components
• Supports devices up to 15 lbs.
• Includes four shoulder washers to allow smaller hardware to fit properly in the larger plate holes
• Backed by RAM Mounts' lifetime warranty

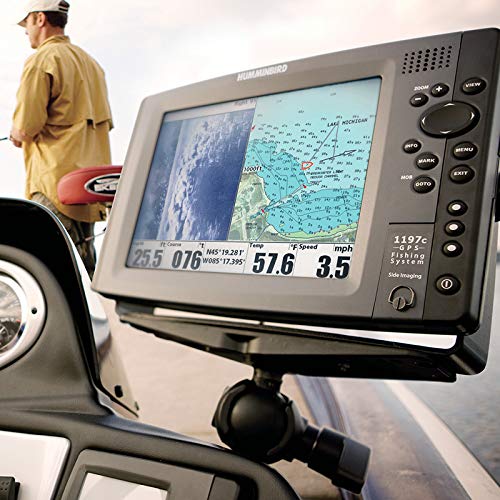

The 11" x 3" rectangular plate is a universal mounting bracket with a wide selection of pre-drilled hole locations to match many popular marine electronics and gimbal brackets. In certain applications, additional holes may need to be drilled for a precise fit. With its rugged construction and tool-free angle adjustability, the RAM-D-111 is an ideal flat-surface mounting solution for the helm, dash, or console of any boat.

Specifications:

• Ball/Socket Size: D-Size (2.25")
• Round Base Diameter: 3.68"

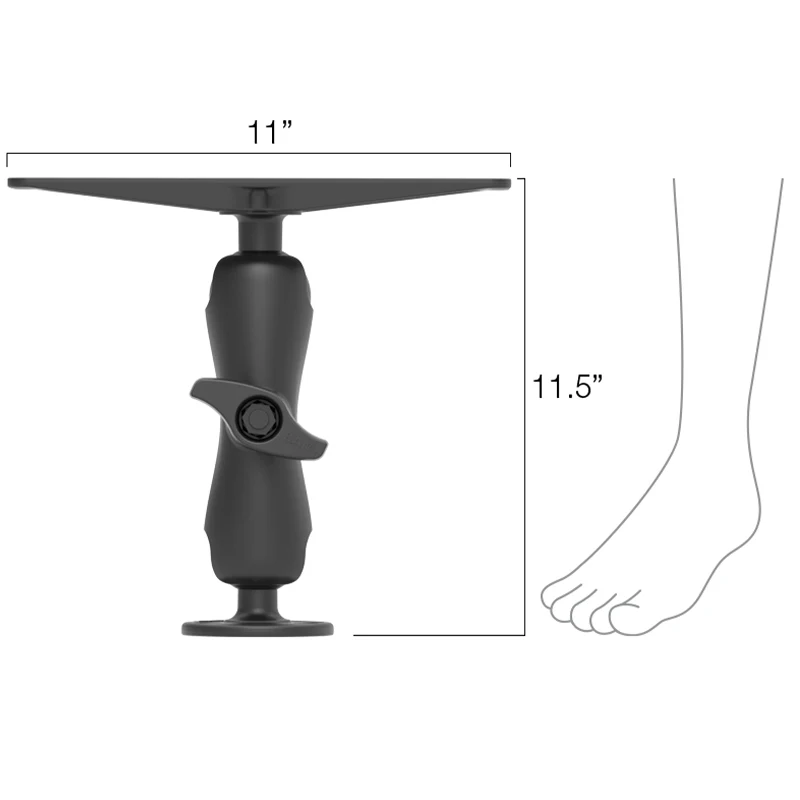

• Rectangular Plate Size: 11" x 3"
• Material: Powder-coated marine-grade aluminum
• Weight Capacity: Up to 15 lbs.
